Standard specification
- To suit standard lifting equipment
- 4mm base and ends
- 3mm sides and roof
- Single rail 76 x 38mm RSC bracing rails
- Under floor tip bar
- Drop forged lifting lugs with backing plate
- Weld numbers
Optional extras
- Full and half tipper tailgate
- Extra compartments
- Loading doors: tailgate door/side panels/front panels
- Personnel door (tip end/tailgate)

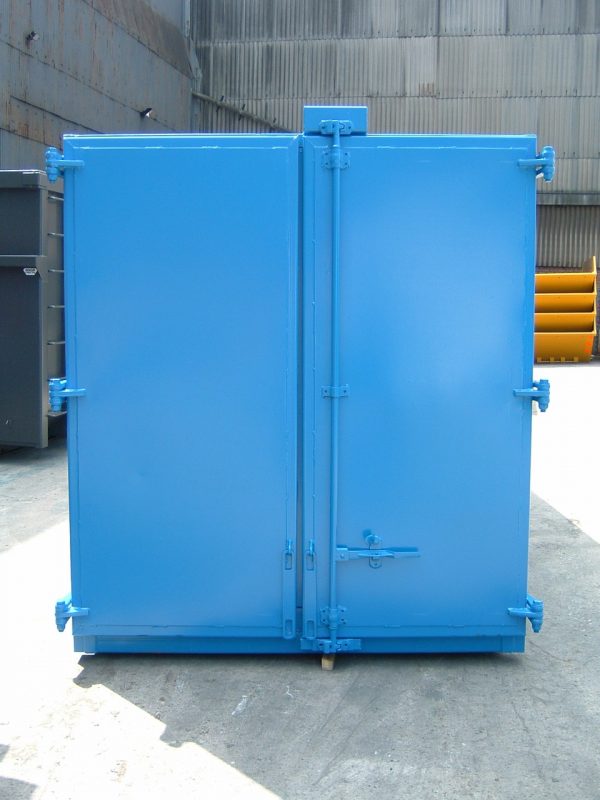

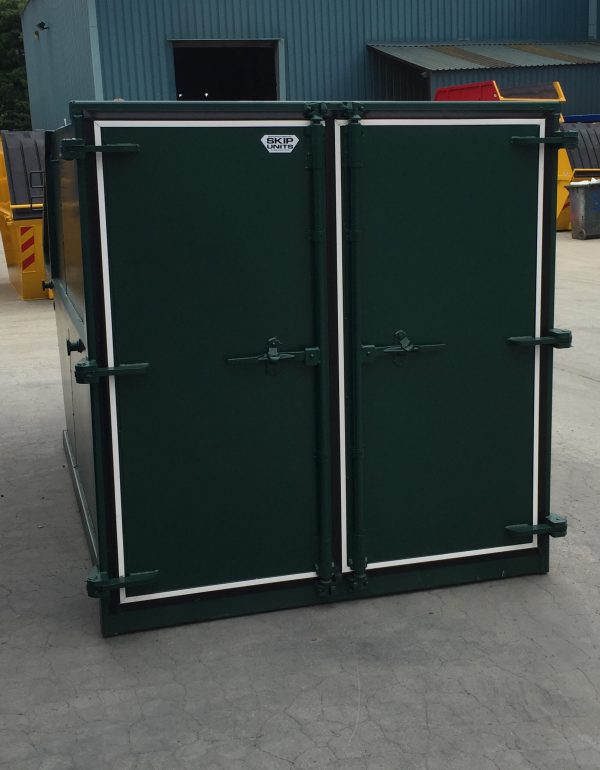

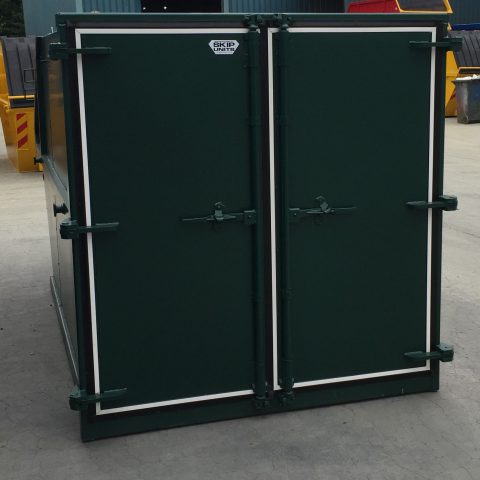

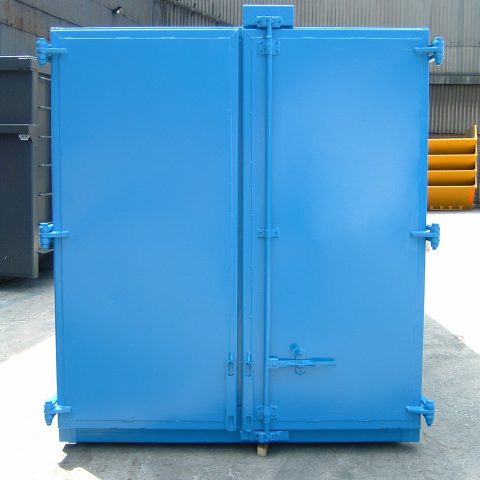

- Double doors
- Large stencil – vinyls
- TIR type door seals
- 100×50 PFC bracing
- Marker boards (with or without protective edge)
- Extra side uprights
- 2 colours
| Popular Sizes (cuyd) | Length (mm) | Width (mm) | Height (mm) | Weight |
|---|---|---|---|---|
| 10 | 3000 | 1865 | 1910 | 900kg |
| 12 | 3680 | 1865 | 2195 | 1000kg |
| 14 | 3680 | 1865 | 2150 | 1100kg |
| 16 | 3680 | 1865 | 2335 | 1200kg |
