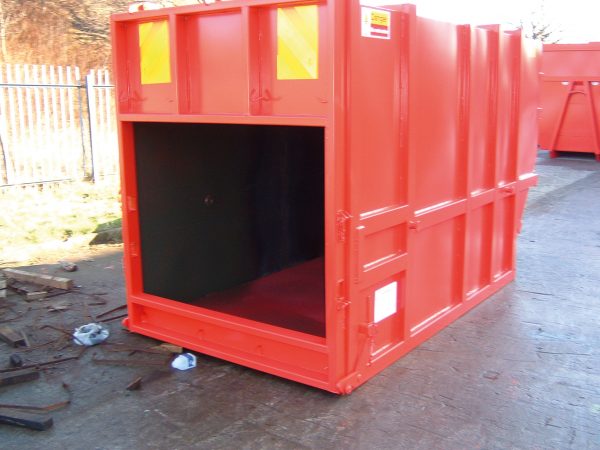

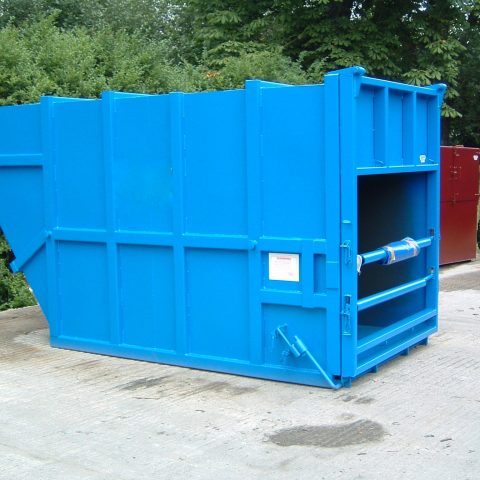

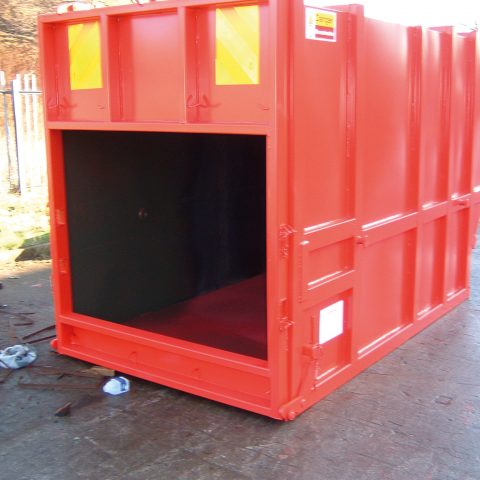

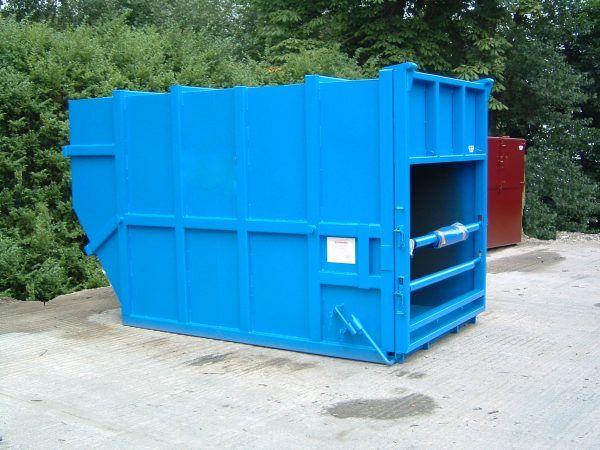

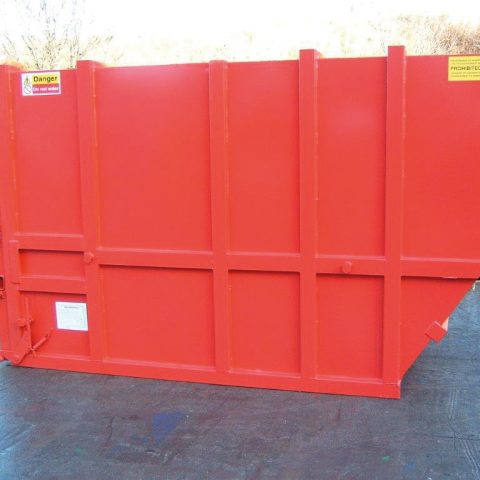

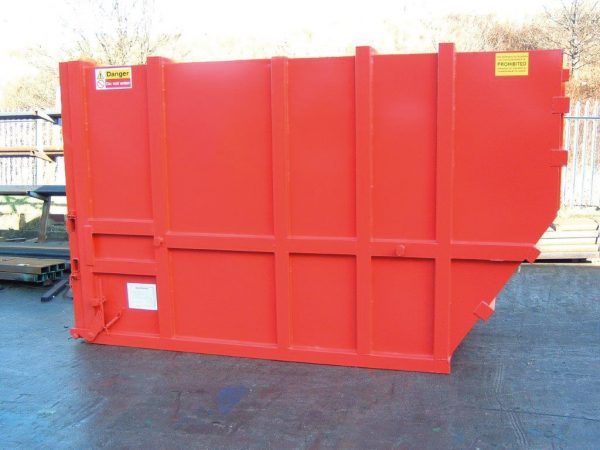

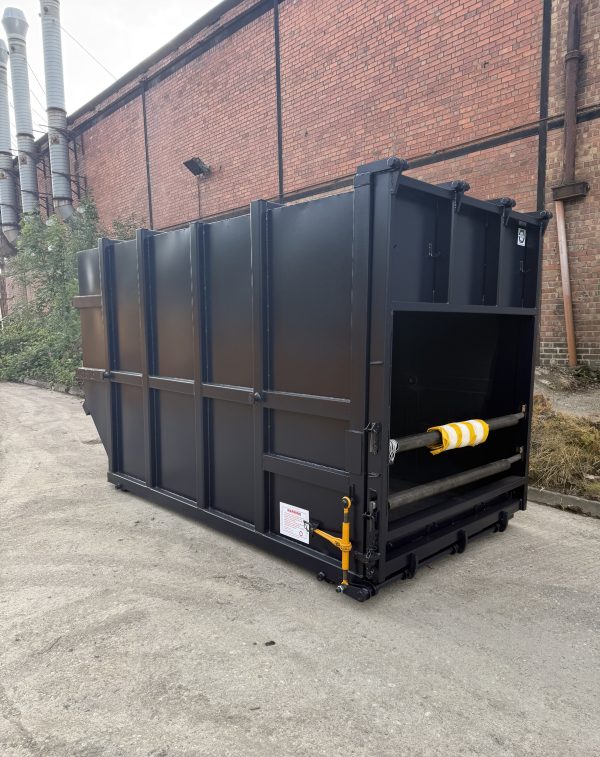

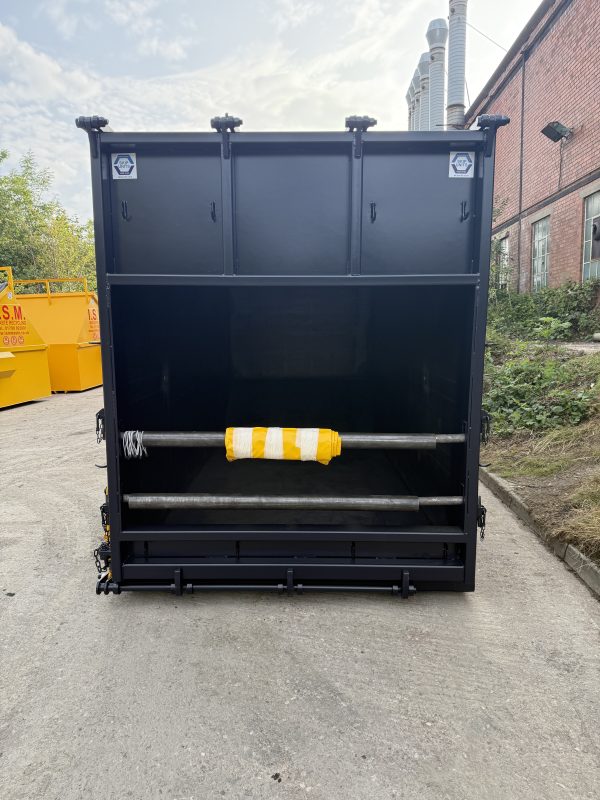

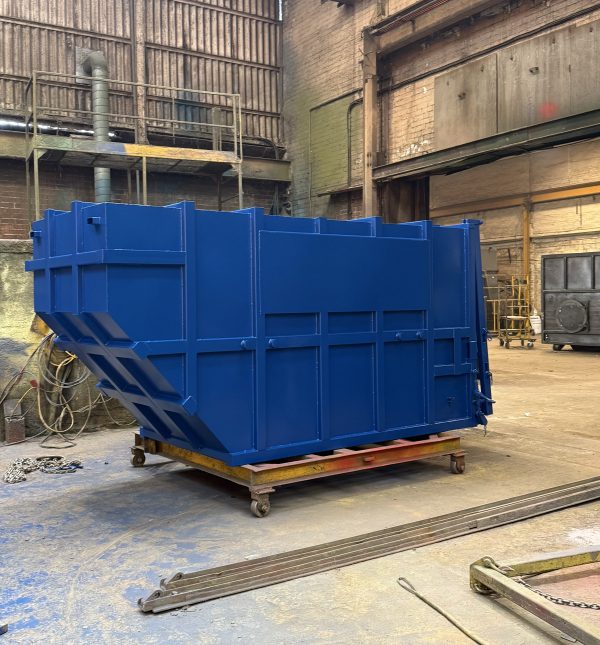

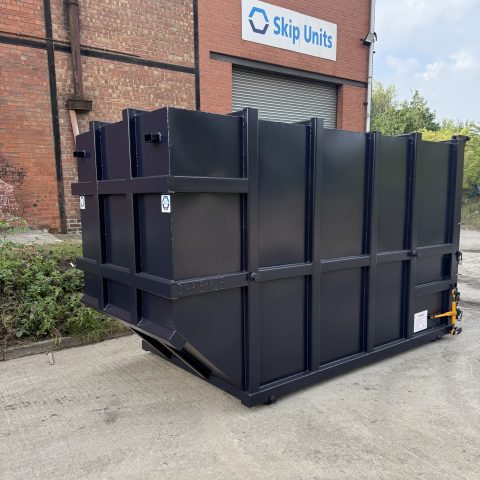

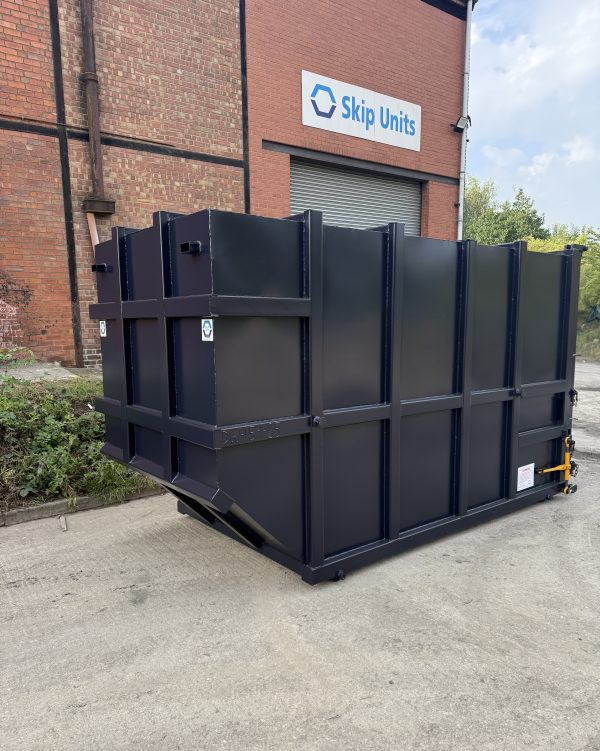

Standard specification

  • To suit standard lifting equipment
  • 4mm base and ends
  • 3mm sides and roof

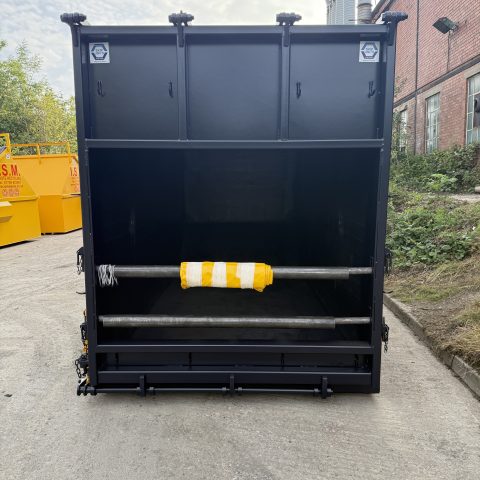

  • Tailgate
  • Under floor tip bar
  • Grease nipples on hinges
  • Weld numbers
  • Drop forged lifting lugs with backing plate
  • 2 tubes, 4 pins and PVC cover
  • 2 vent holes in headboard

Optional extras

  • Over aperture doors
  • Signboard
  • 2 colours
  • Marker boards
  • Protective edge for marker boards
  • Extruded rubber door seals
Popular Sizes (cuyd) Length (mm) Width (mm) Height (mm) Weight
14 3630 1870 2230 1250kg
16 4330 1870 2250 1350kg
20 4680 1870 2395 1550kg
*Nominal full external dimensions
