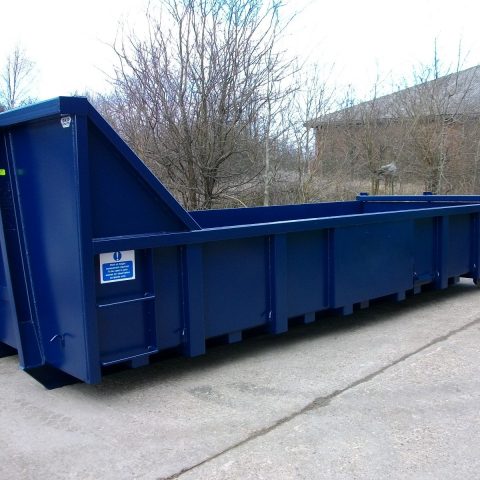

Standard specification
- HL20 subframe to suit standard hooklift equipment, conforming to CHEM TS8 interface requirements
- Secondary locking pin
- Fully welded internal seams
- 2 free running rollers
- Rope hooks
- Grease nipple (rollers)
- Grease nipple (hinges)

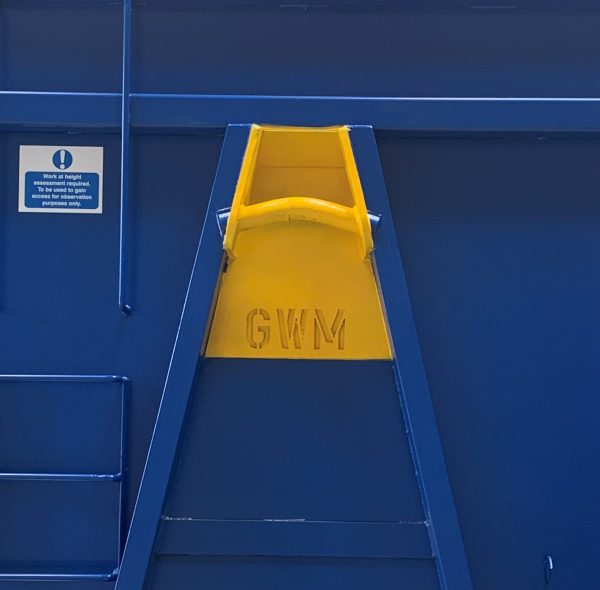

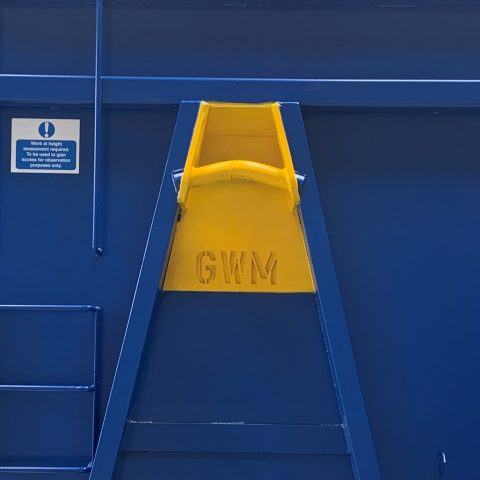

- Striker plate and safety deflector plate

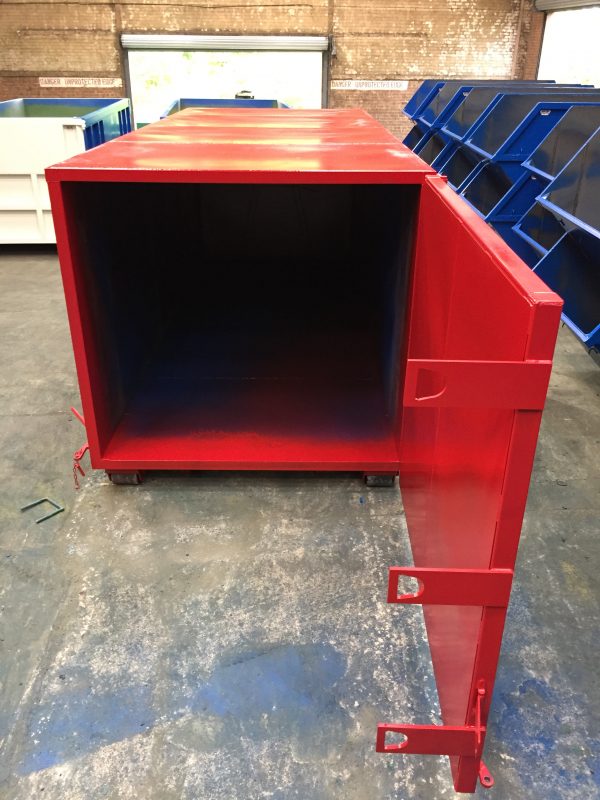

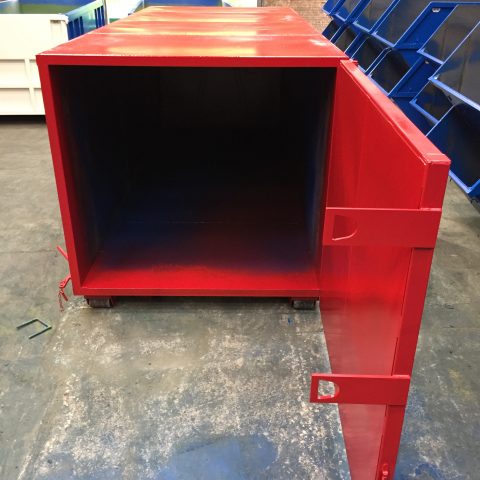

- Single door with turnbuckle, ratchet or lever locking gear
- 5mm base
- 4mm headboard
- 3mm plain sides

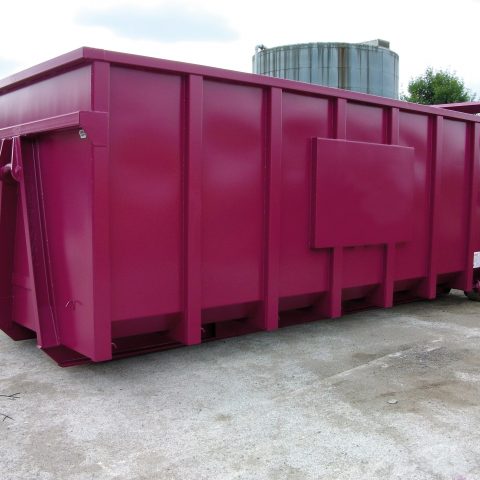

- 7 uprights
- Weld numbers
Optional extras

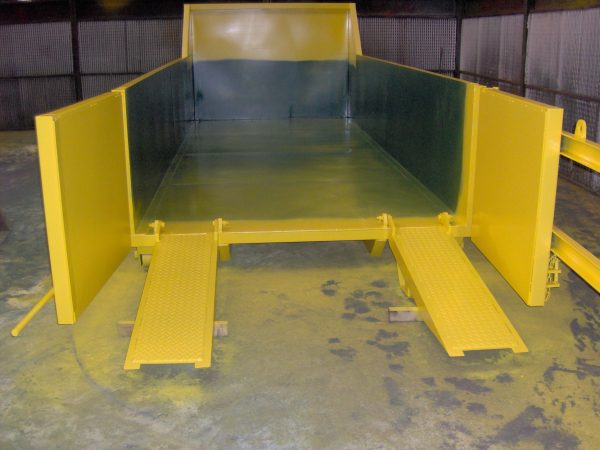

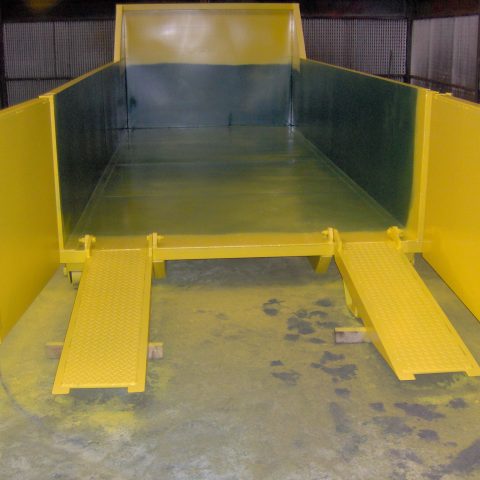

- Cattle ramp fastener to door
- Full web plates
- Infills on base
- 6” x 3” top rail
- Extended striker plate (“A” Frame)
- Poly covered rollers with bearings
- Overcam locks on single door

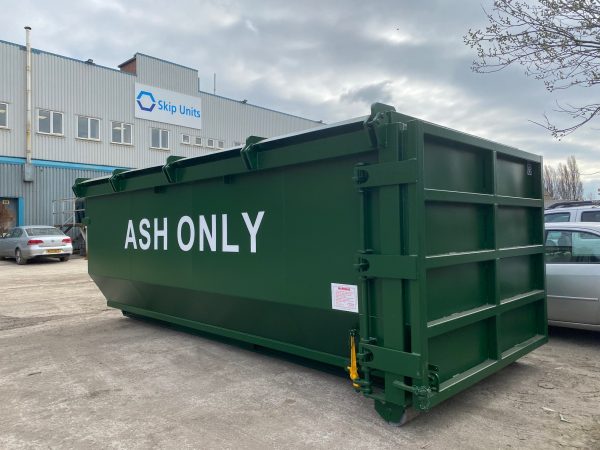

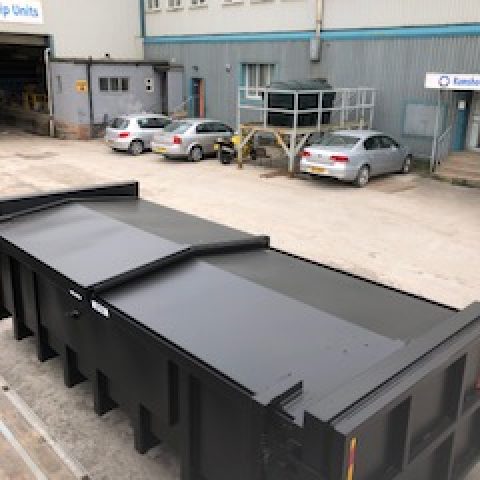

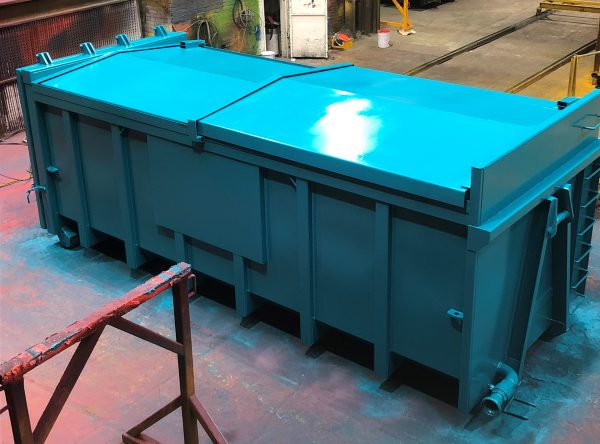

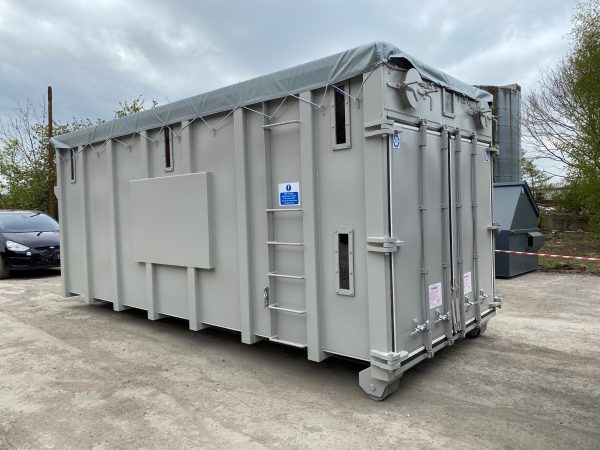

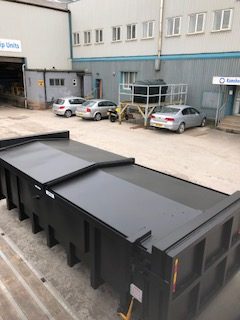

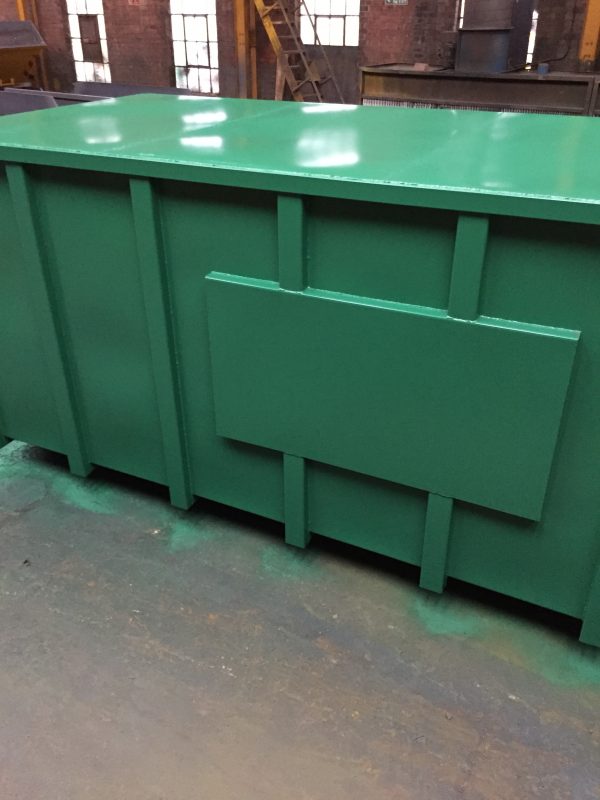

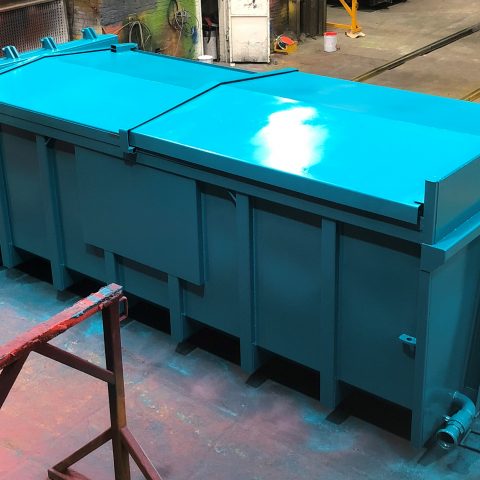

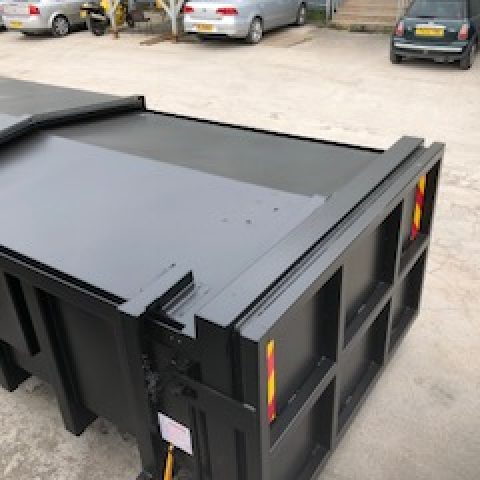

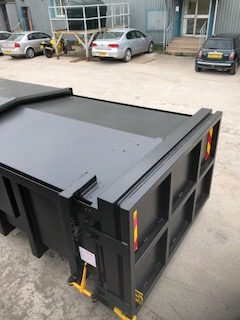

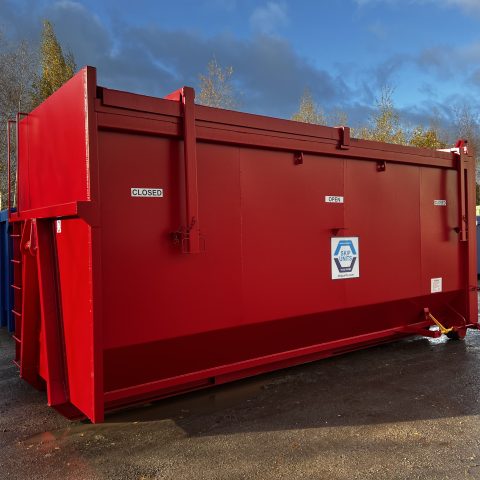

- Sliding 2 piece flat roof
- Extruded rubber seal with ratchet locking
- Tube goalpost
- Sheet rack
- Extra uprights
- Marker boards
- 2 colours
- Stencils / vinyls

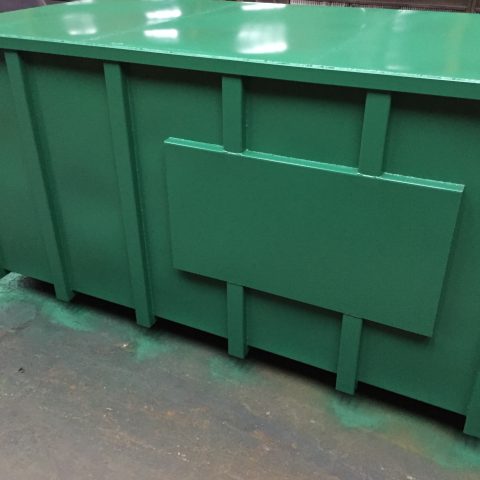

- Signboard
- Removable goalpost

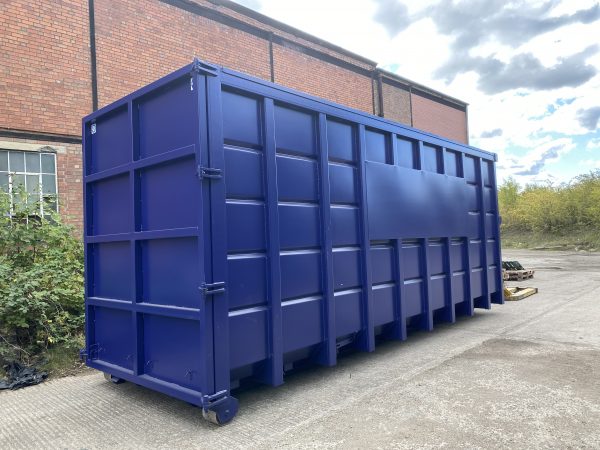

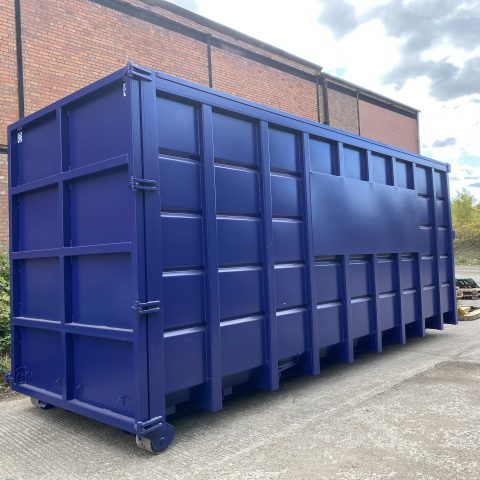

- Swaged sides
- Male/female door guides
- Extra X members

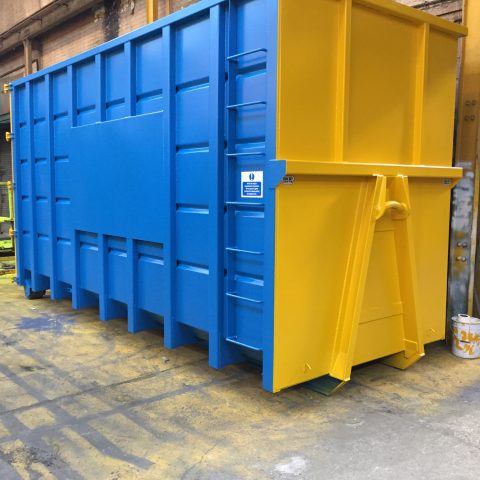

- Ladders
- RSA on top rail
- Removable rollers
- Sliding 2 piece apex roof

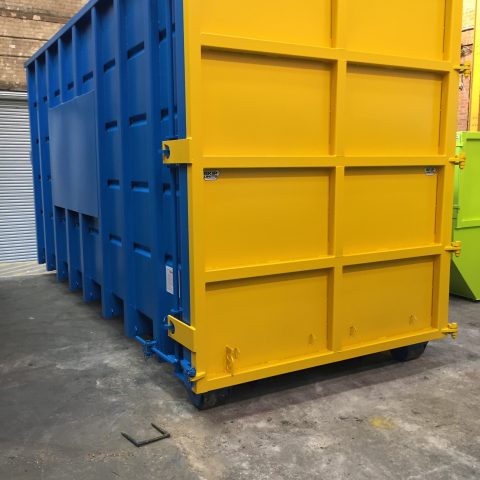

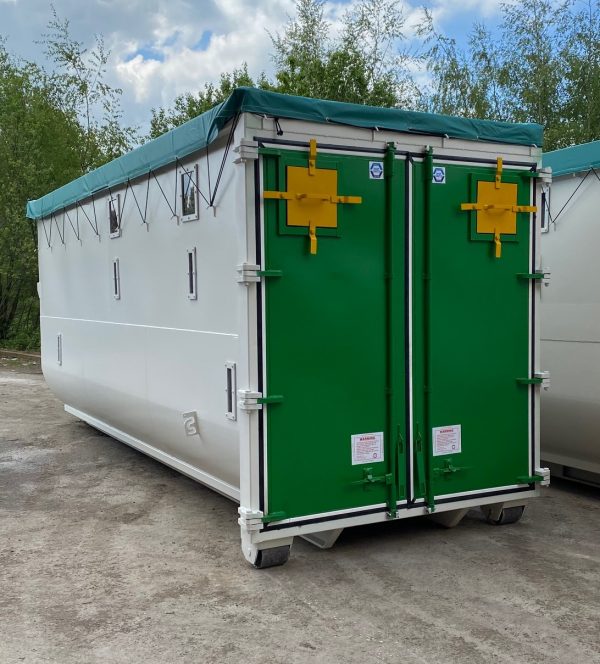

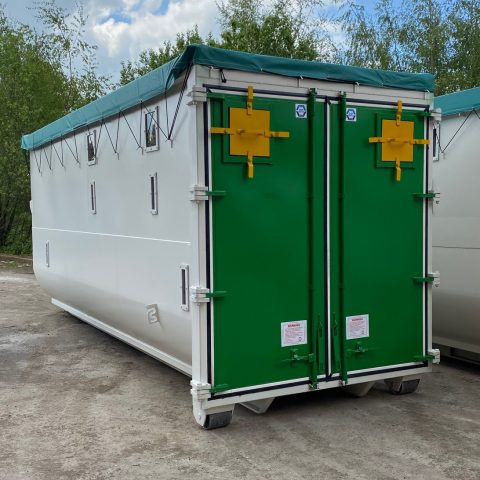

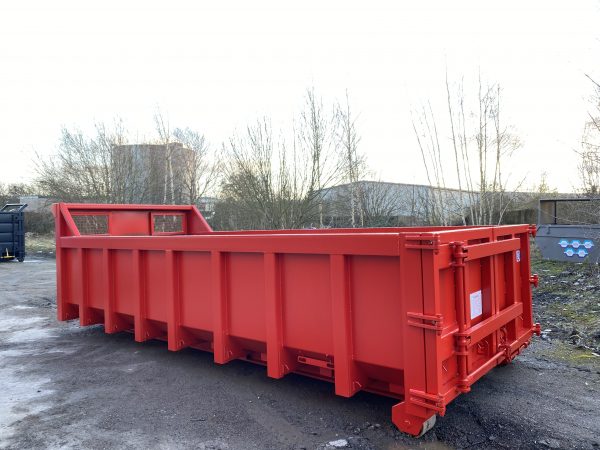

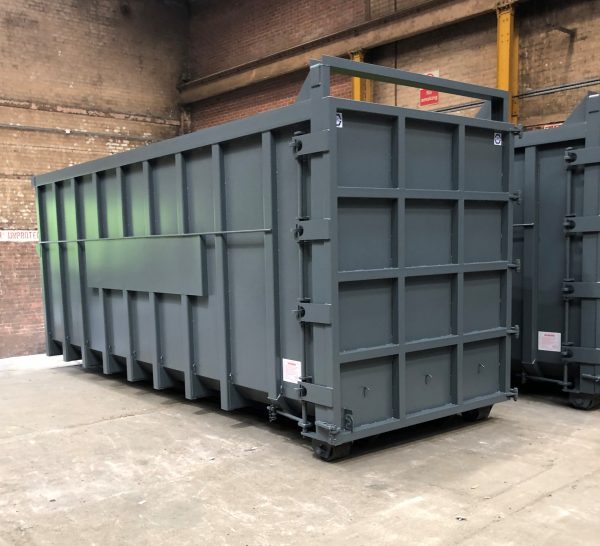

- Double doors with either: Multilift type locking with Norfolk hooks or barn type locking both fitted with secondary locking or TIR type locking
We are able to manufacture Demountables that are larger than the 50 yd. 75 yd is the largest we have manufactured to date.

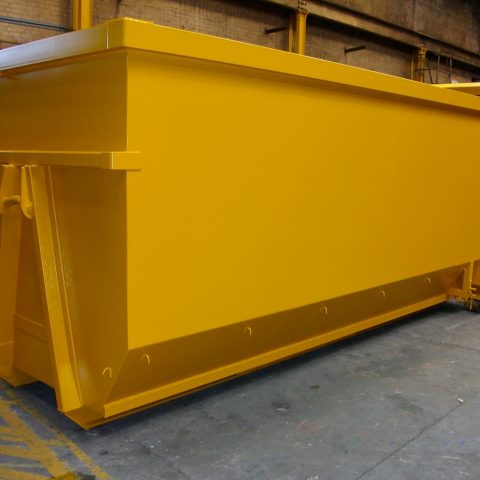

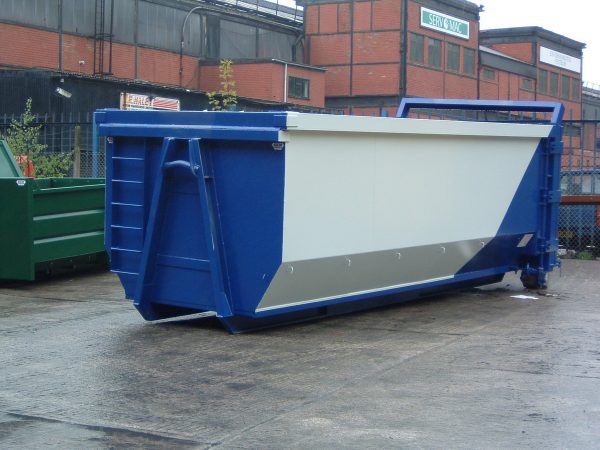

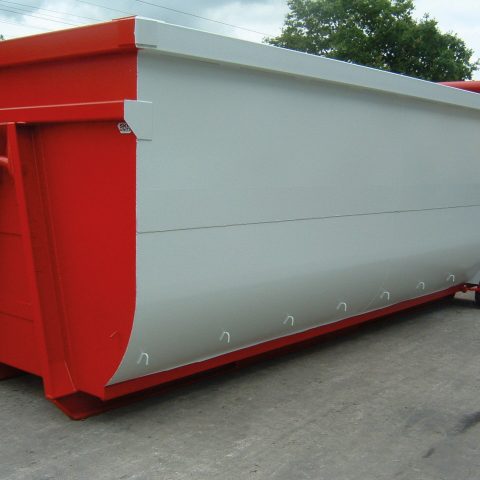

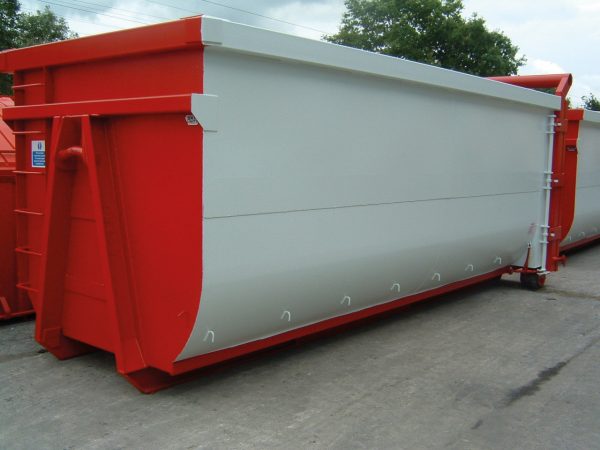

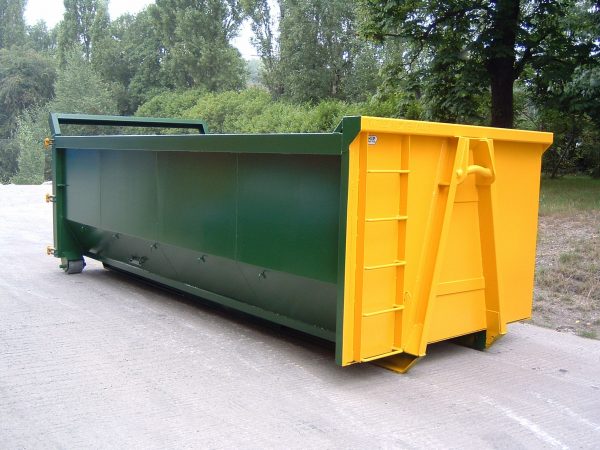

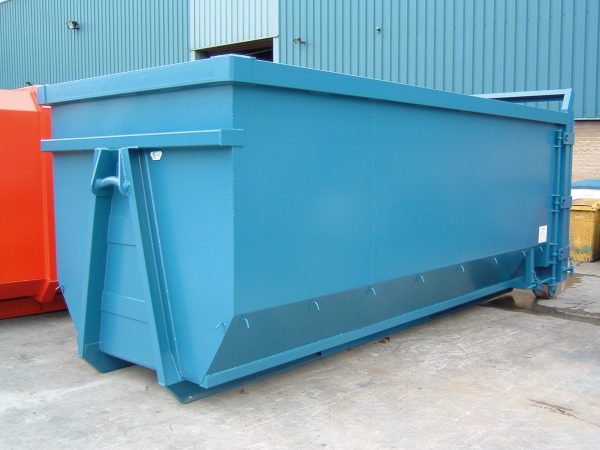

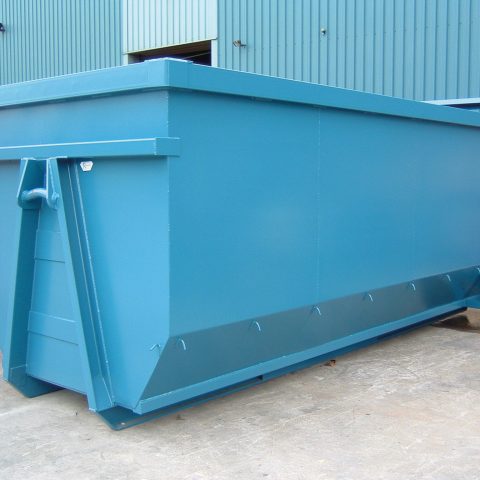

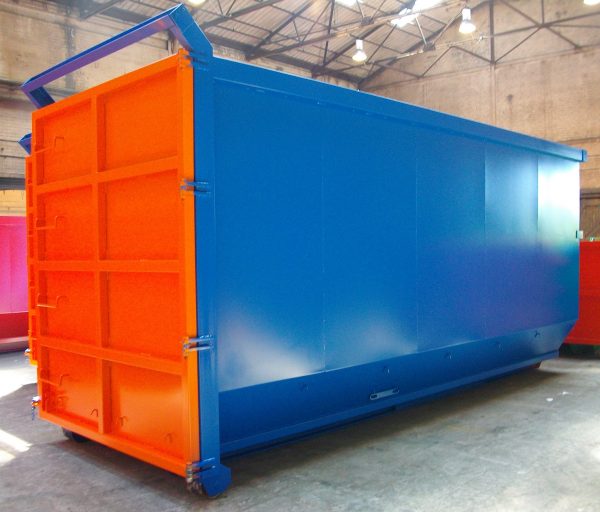

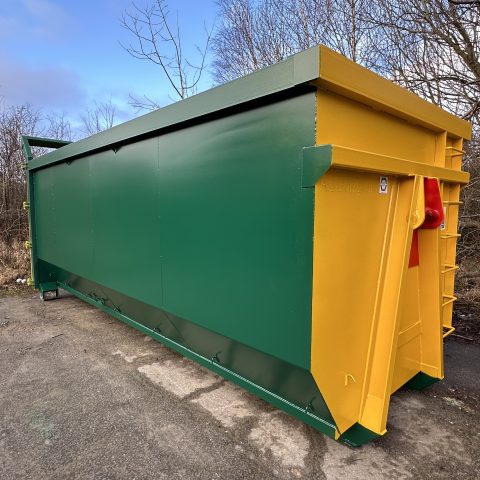

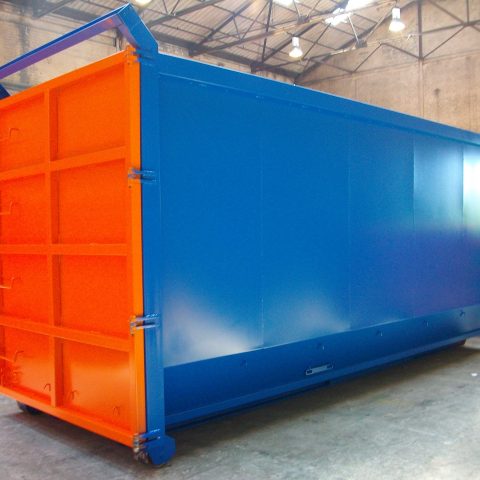

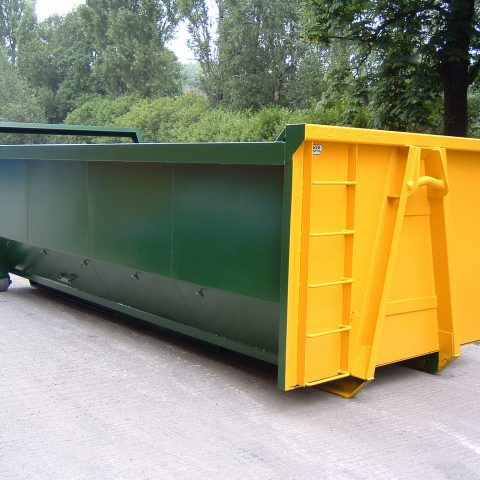

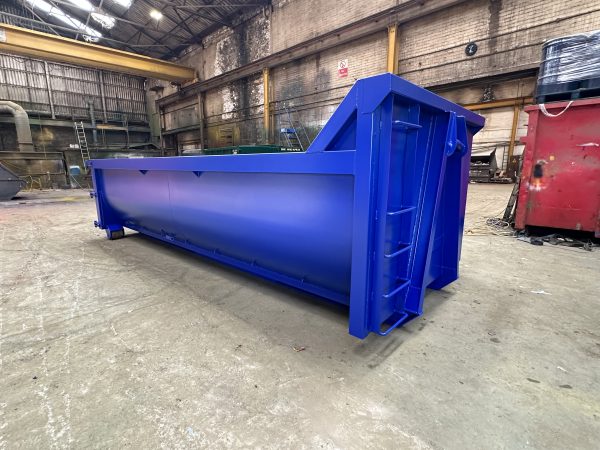

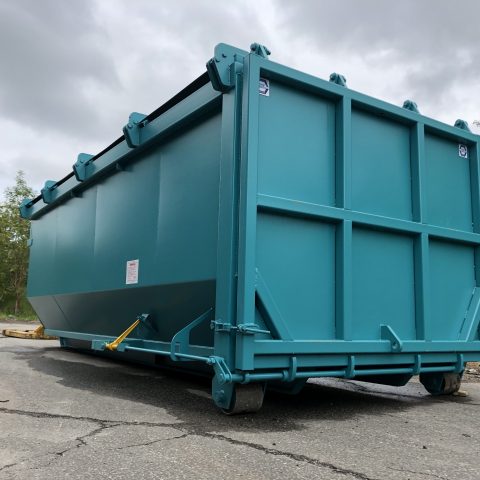

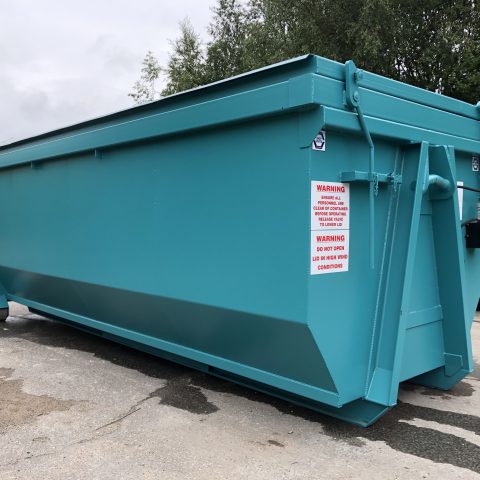

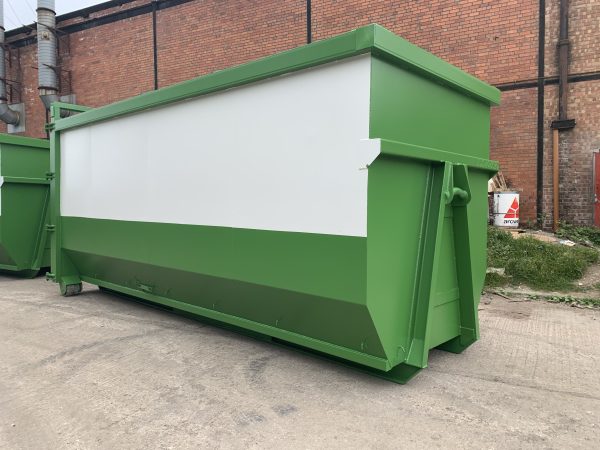

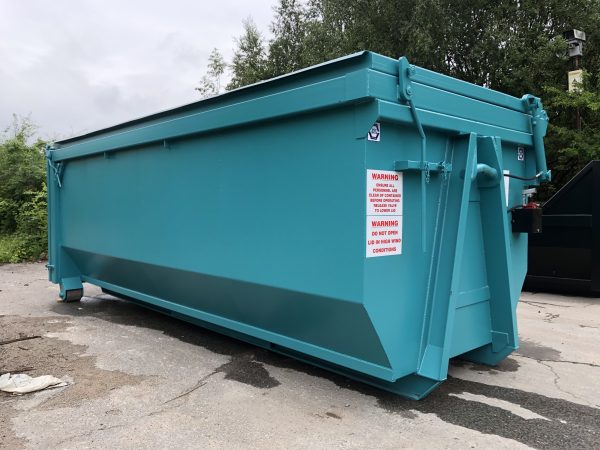

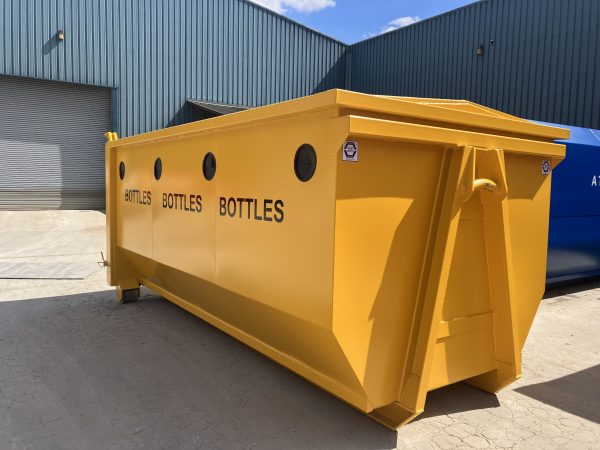

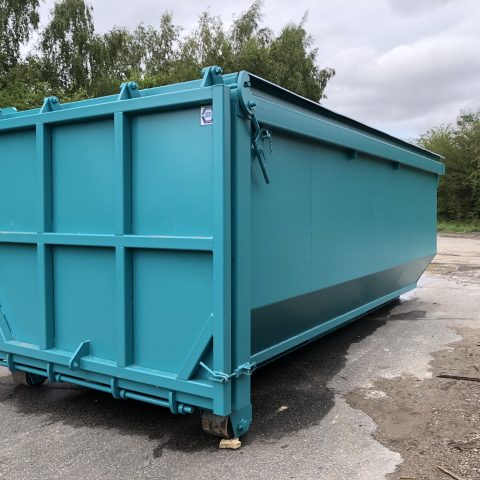

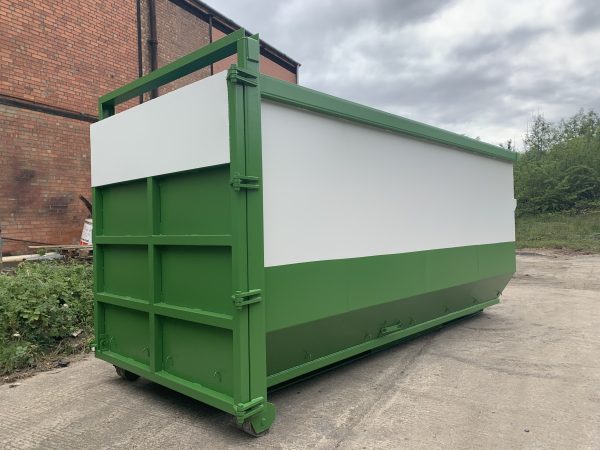

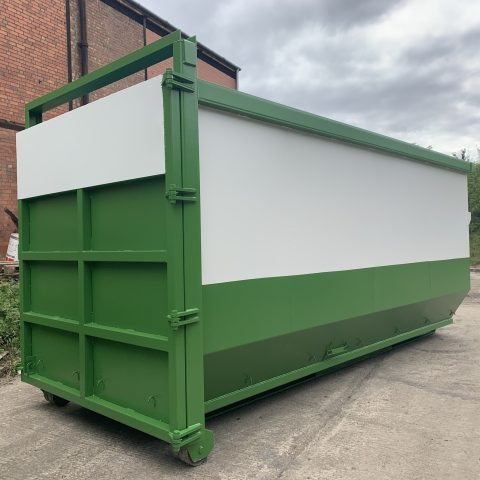

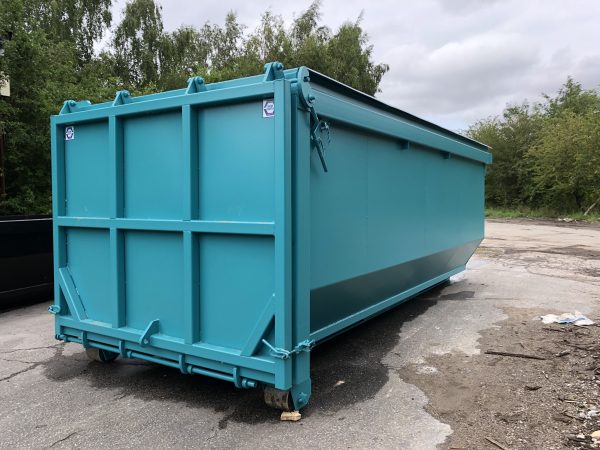

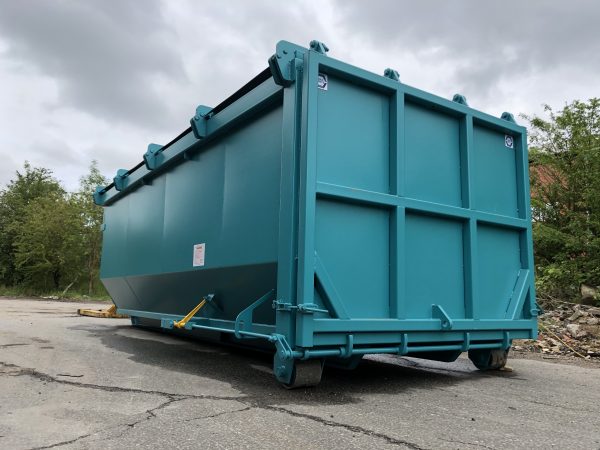

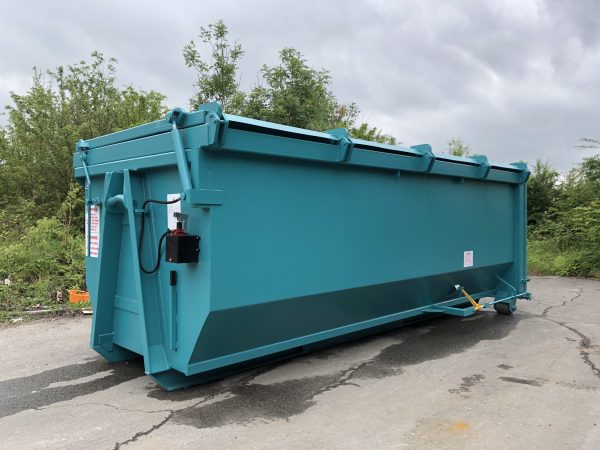

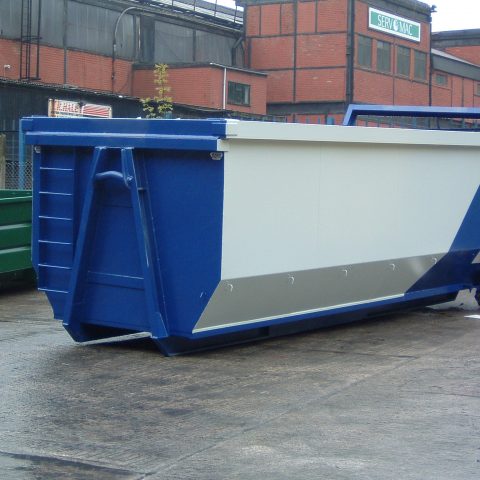

Smoothline and Smoothcurve containers come with 5mm bases, 4mm headboards and 5mm sides as standard

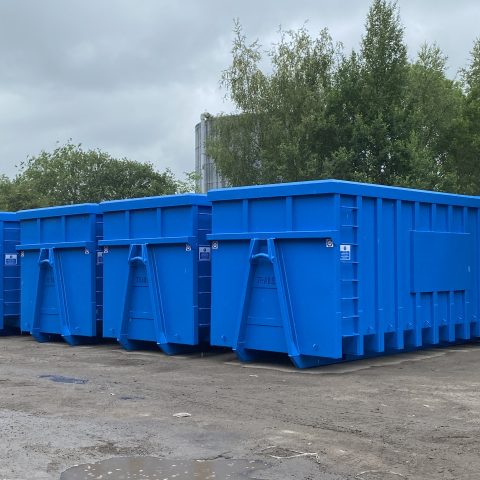

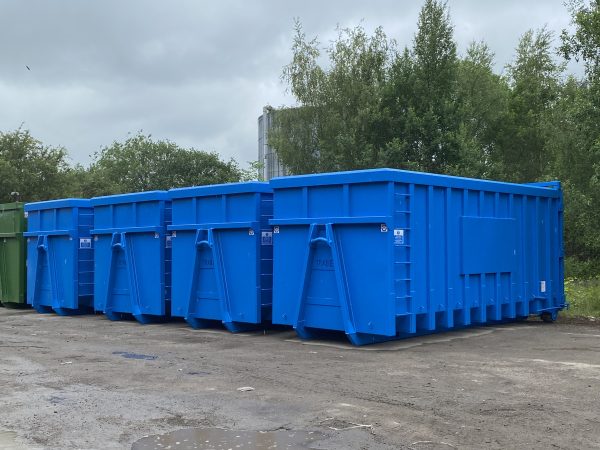

| Popular Sizes (cuyd) | Length (mm) | Width (mm) | Height (mm) | Weight |
|---|---|---|---|---|

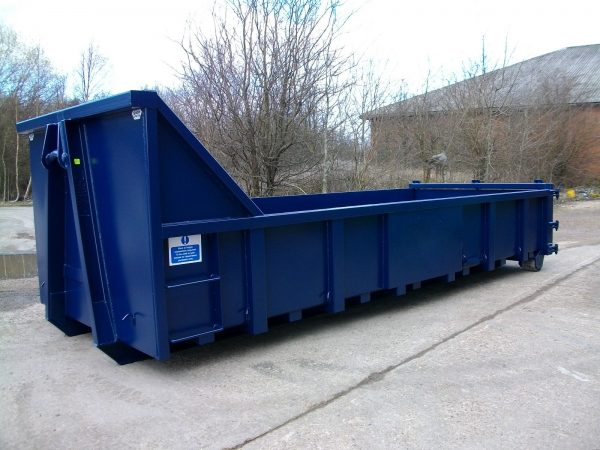

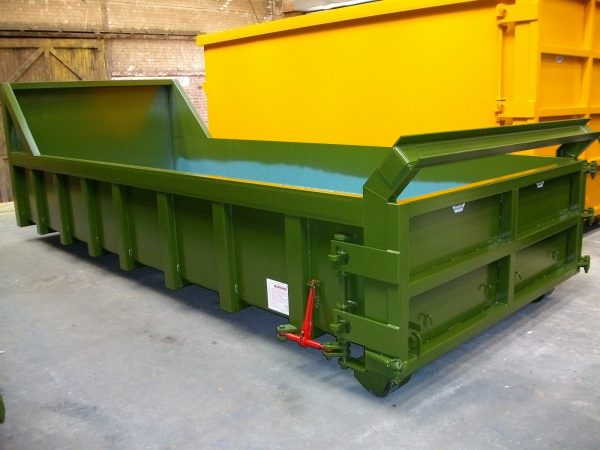

| 15 | 6145 | 2550 | 1915 | 2000kg |
| 18 | 6145 | 2550 | 1915 | 2086kg |
| 20 | 6145 | 2550 | 1915 | 2143kg |

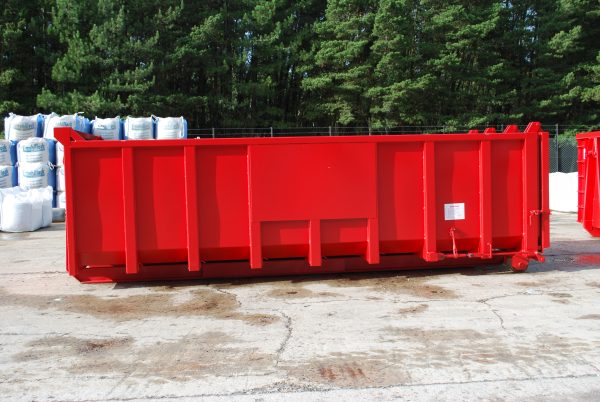

| 25 | 6145 | 2550 | 1915 | 2289kg |
| 30 | 6145 | 2550 | 2080 | 2442kg |

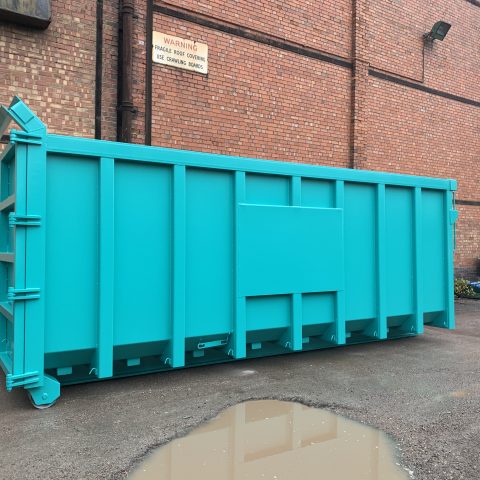

| 35 | 6145 | 2550 | 2385 | 2606kg |
| 40 | 6145 | 2550 | 2690 | 2769kg |
| 45 | 6145 | 2550 | 2995 | 3104kg |

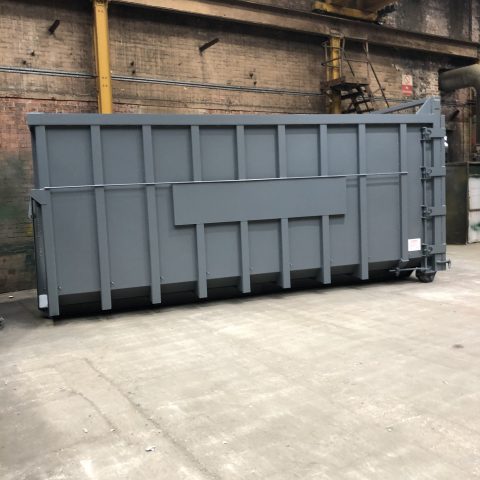

| 50 | 6145 | 2550 | 3300 | – |
