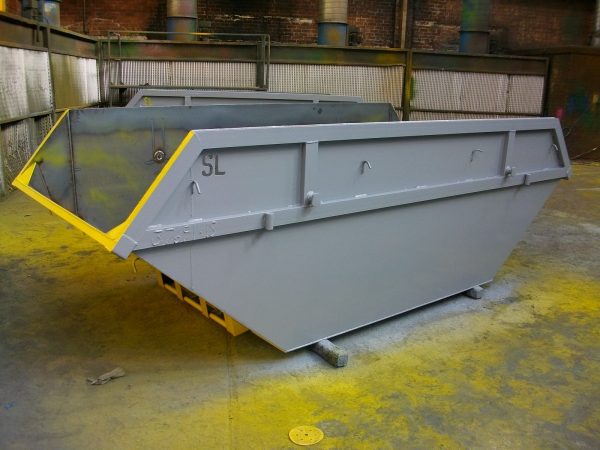

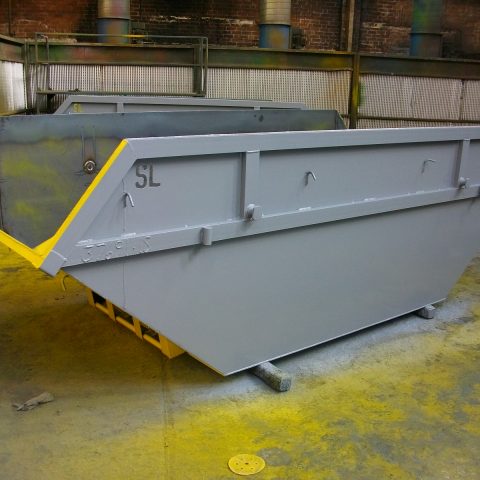

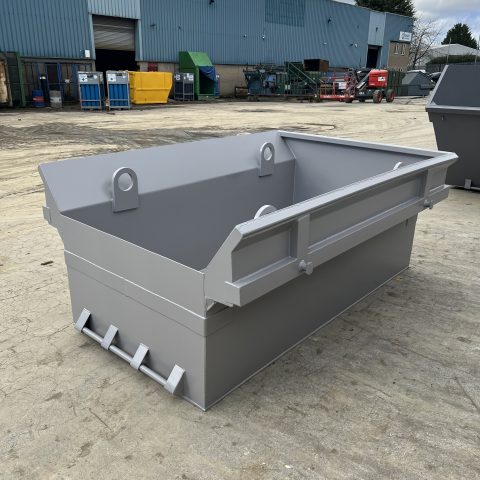

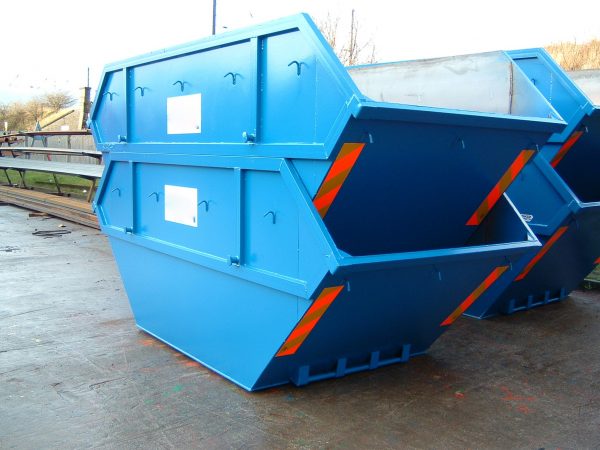

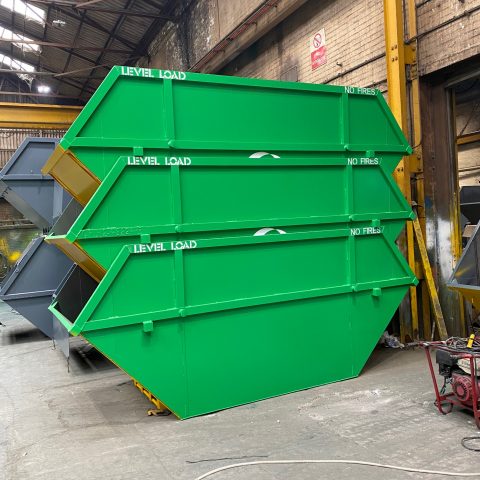

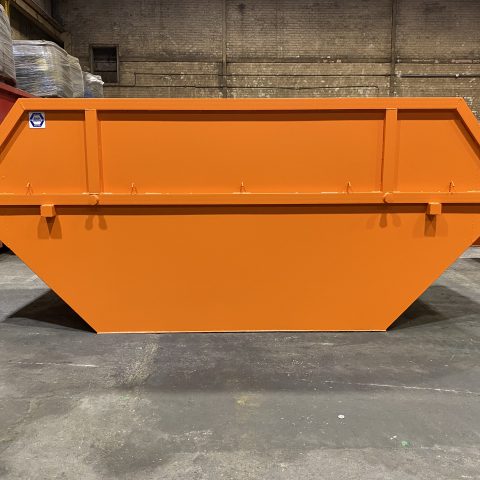

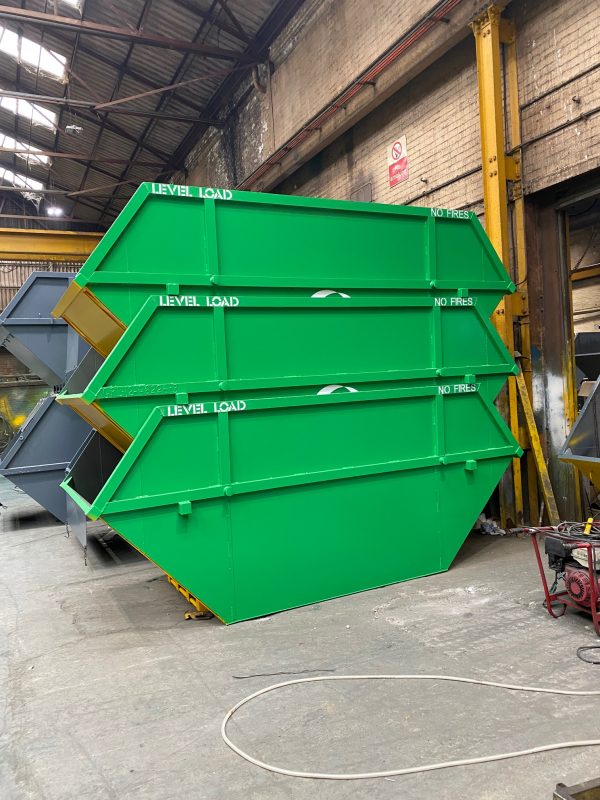

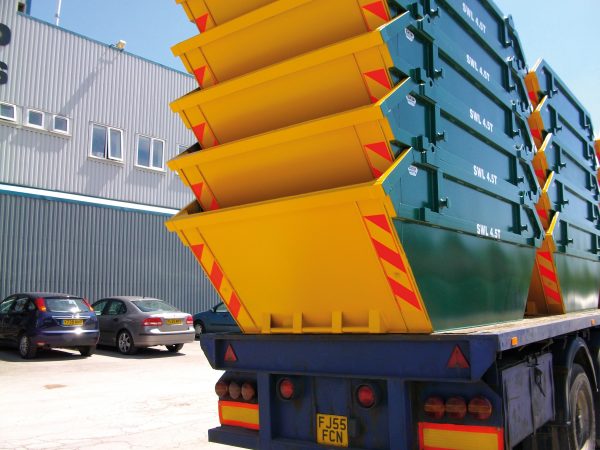

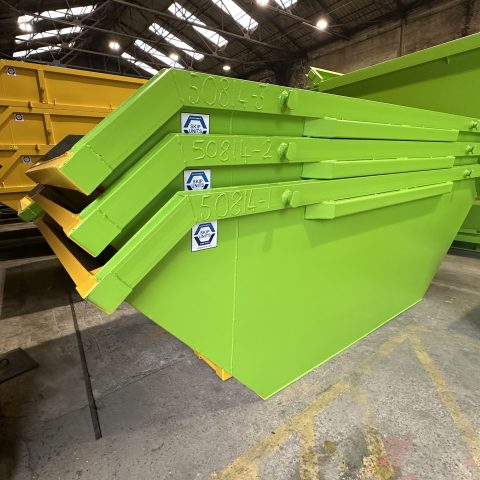

Standard specification
- To suit standard lifting equipment

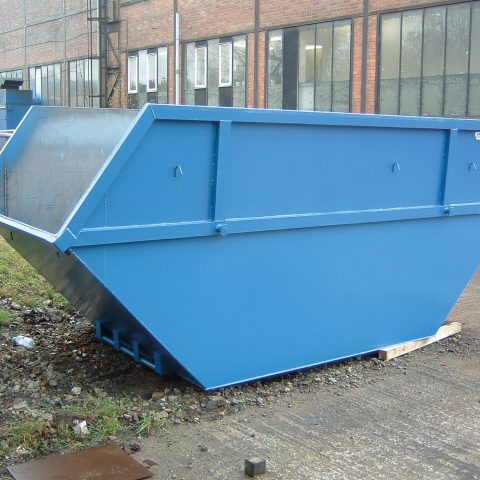

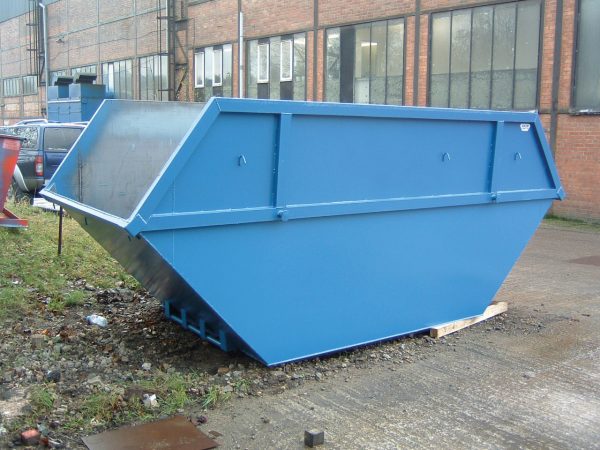

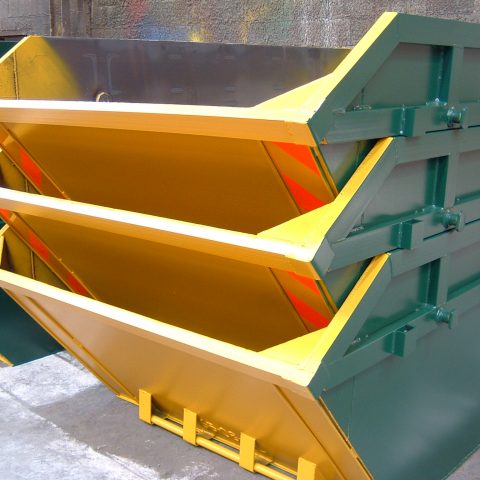

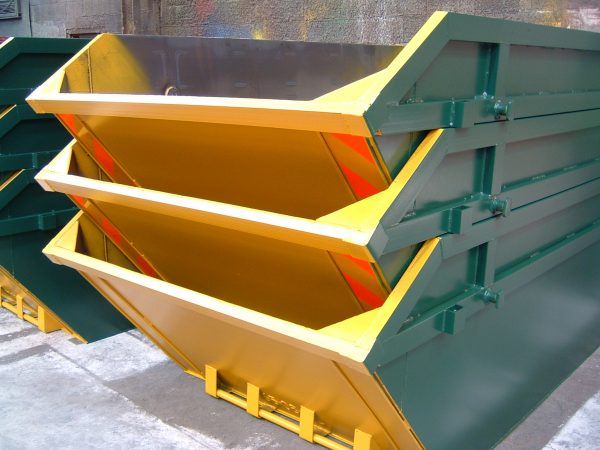

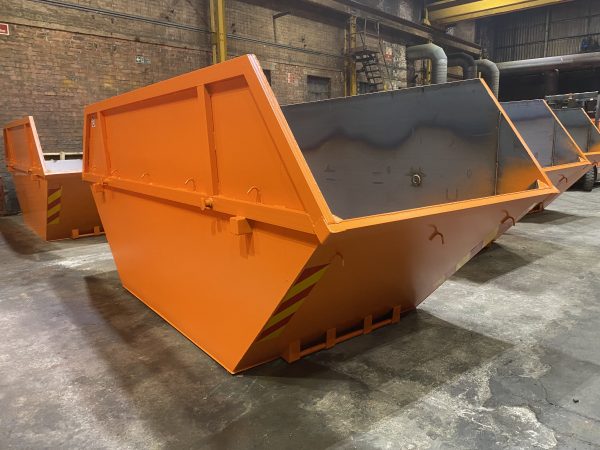

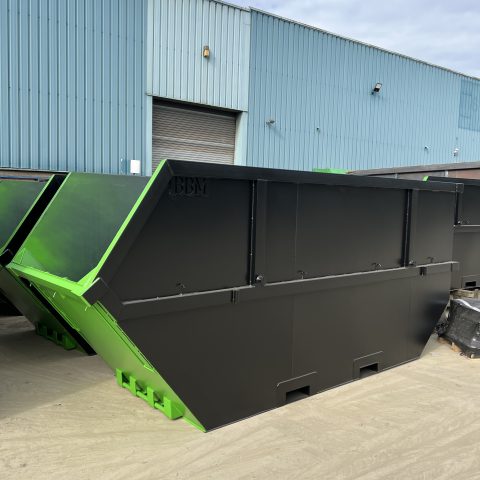

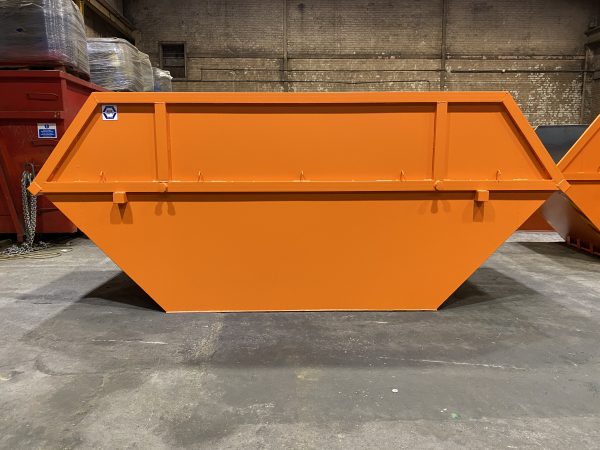

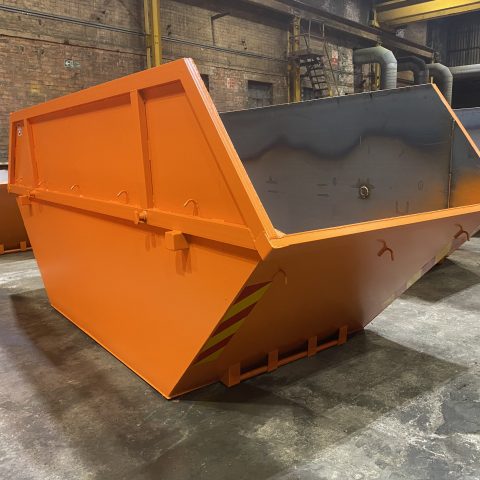

- Can be scow end or flat top

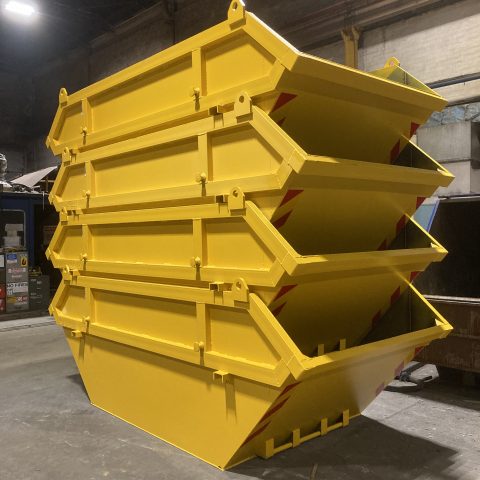

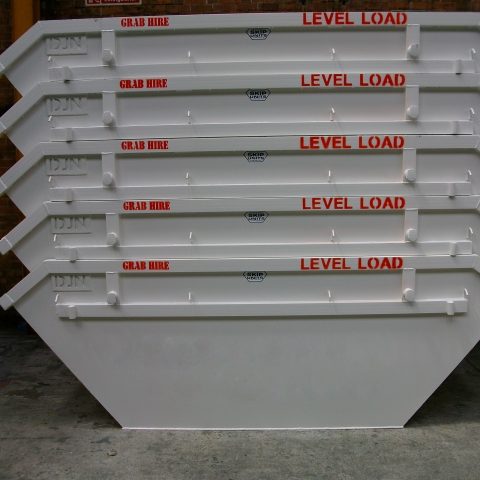

- Twin rail, double/single tip
- Double 76 x 38mm RSC bracing rails
- Short corner gussets
- Forged lifting lugs with backing plate
- Chip breakers
- Fully welded external seams and stitched channels
- PSA wraparound corners
- Weld numbers
- Standard tip bars
Optional extras

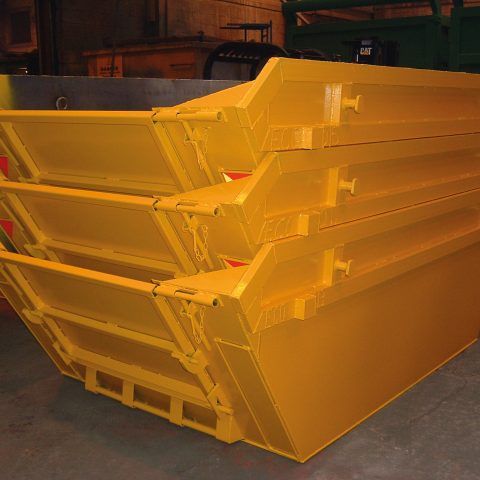

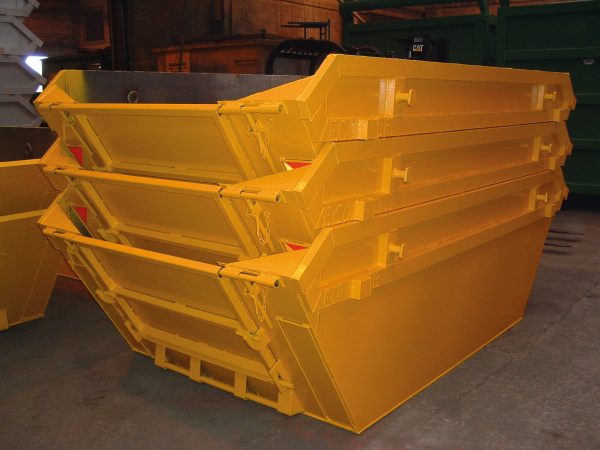

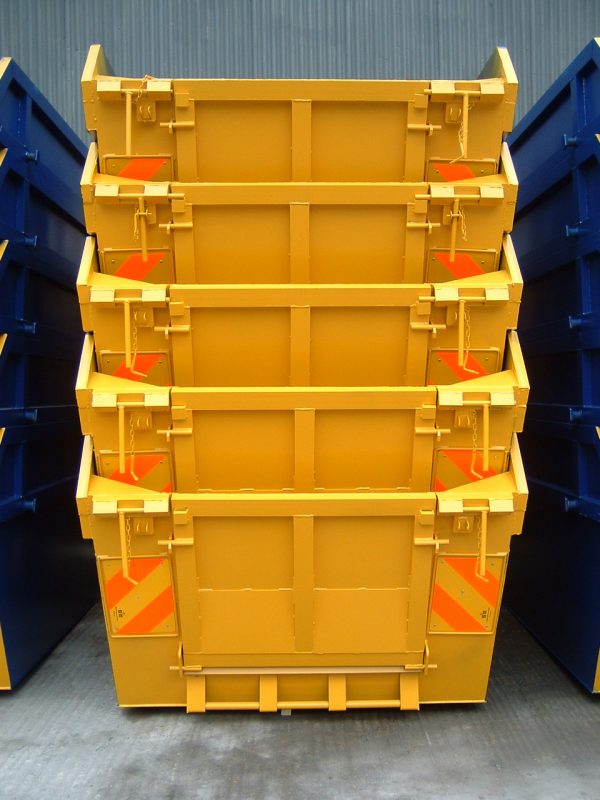

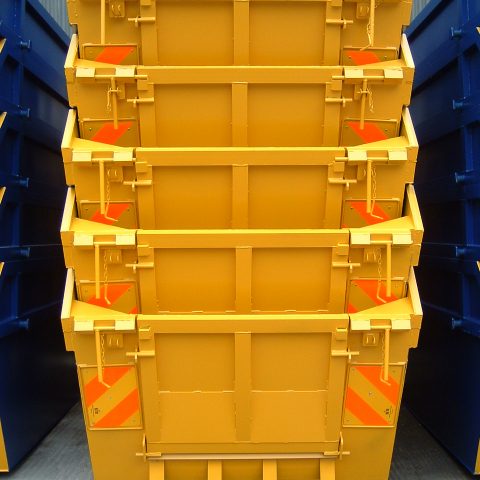

- Drop door (6-10 cuyd)
- Marker boards (pair)
- Protective edge for marker boards
- Inside primer
- 2 colours
- Full length gusset
- Rope hooks
- Yellow Ends
- Stencils/vinyls
- Drain holes
- Inset tip bar
- Profiled ID plates

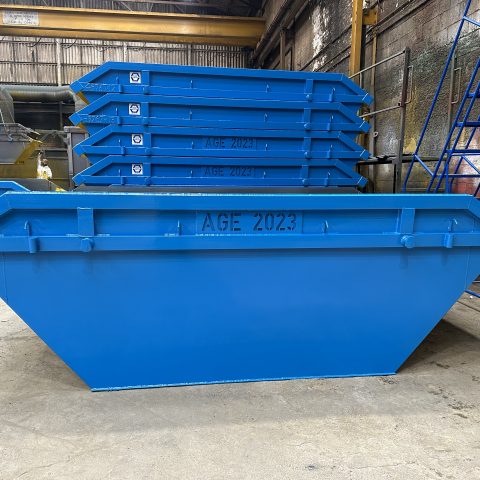

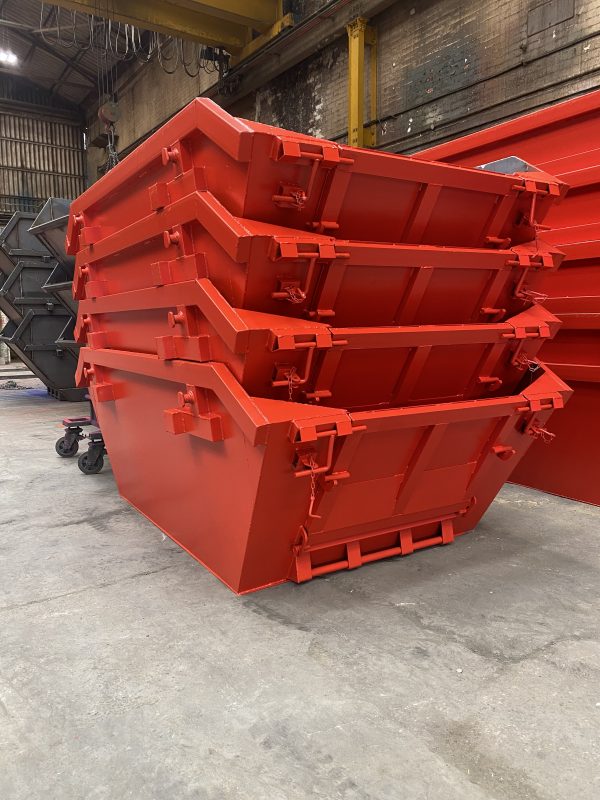

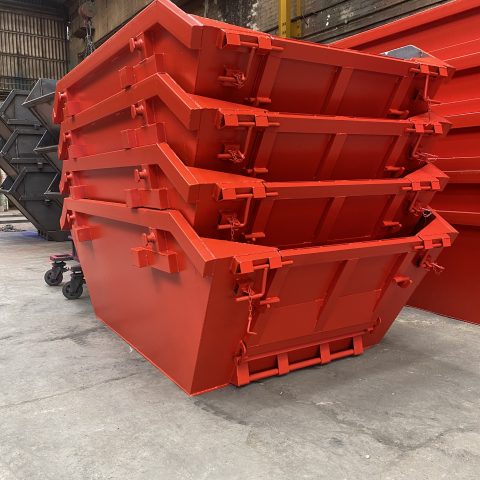

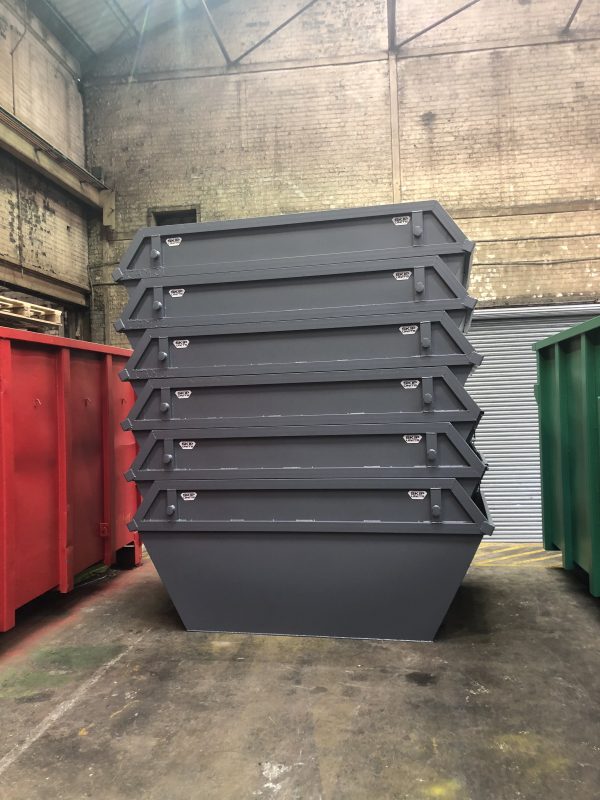

- Stacking blocks
| Popular Sizes (cuyd) | Length (mm) | Width (mm) | Height (mm) | Weight |
|---|---|---|---|---|
| 6 | 2945 | 1865 | 1236 | 562kg |

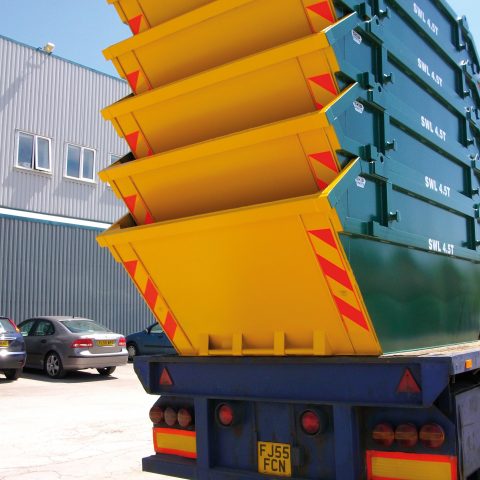

| 8 | 3090 | 1865 | 1537 | 628kg |
| 10 | 3863 | 1865 | 1562 | 640kg |
| 12 | 3853 | 1865 | 1866 | 726kg |
| 14 | 4005 | 1865 | 2050 | 838kg |

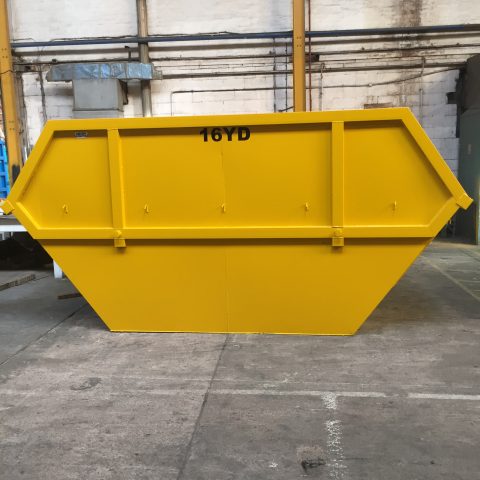

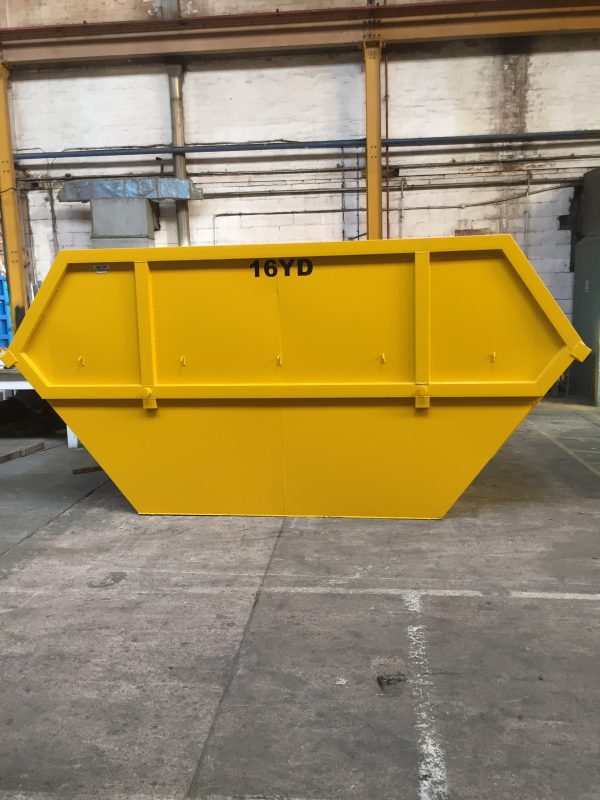

| 16 | 4152 | 1865 | 2047 | 849kg |
