Standard specification

  • To suit standard REL/skiplift equipment
  • Scow end/flat top
  • Double/single tip
  • 76x38mm RSC bracing rails
  • 4mm base and ends
  • 3mm sides
  • Rope hooks and stabiliser
  • Short corner gussets
  • Forged lifting lugs with backing plate
  • Stackable
  • Fully welded external seams andĀ stitched channels
  • PSA wraparound corners
  • One REL end
  • Sockets for loose pins
  • Weld numbers

Optional extras

  • Stencilling/vinyls
  • 4mm sides
  • Loose pins
  • Fixed pins
  • Integral pins
  • Drain holes
  • Marker boards (pair)
  • Protective edge for markerĀ boards
  • Yellow ends
  • Waterproof PVC reinforcedĀ load cover
  • Profiled ID plate
  • Inside primer
  • 2 colours
Popular Sizes (cuyd) Length (mm) Width (mm) Height (mm) Weight

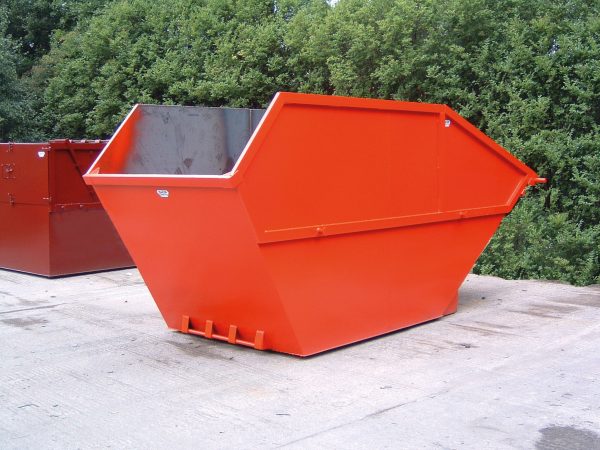

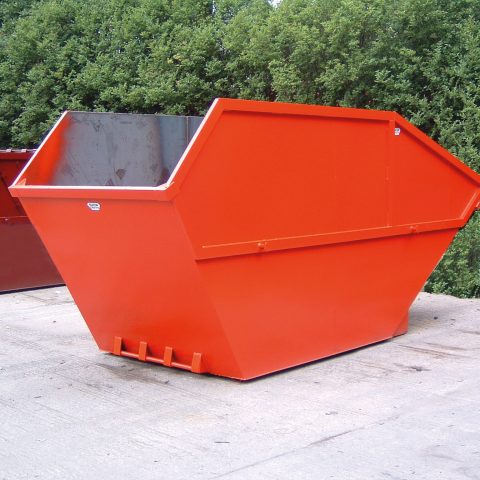

14 4620 1865 2025 1250kg
16 4625 1865 2045 1350kg
*Nominal full external dimensions
