Specification

Designed for high strength and durability, Randalls Simpak Portable compactors are manufacured for use with standard skiplift and hooklift vehicles. The compacting element, which has a horizontal packing blade and container element are integral and are supplied with a sealed rear door to prevent leaking.

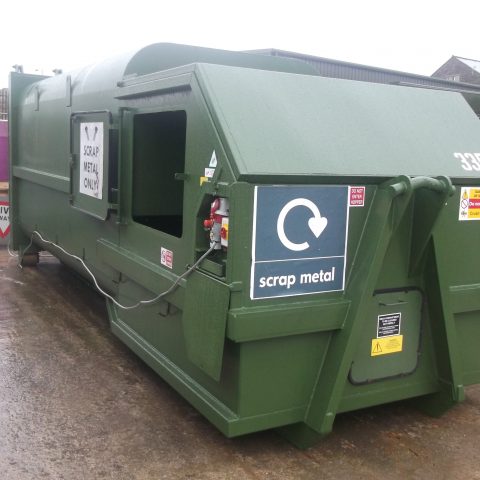

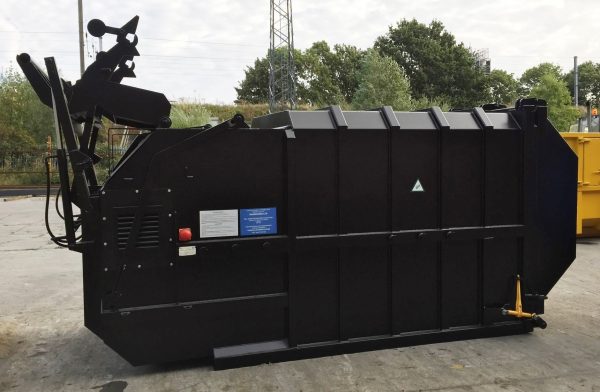

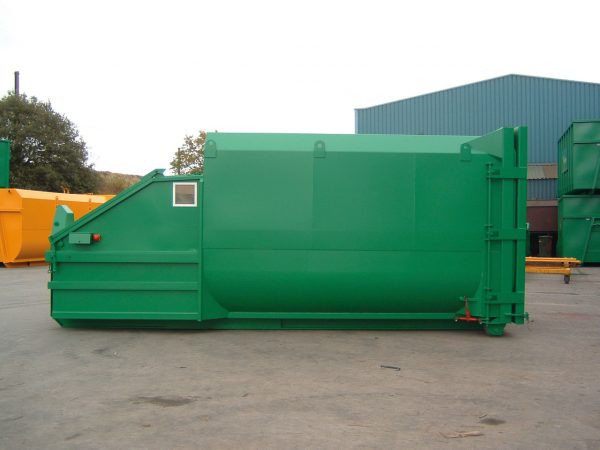

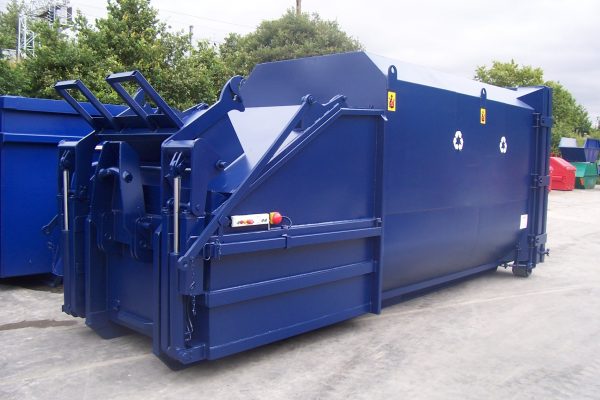

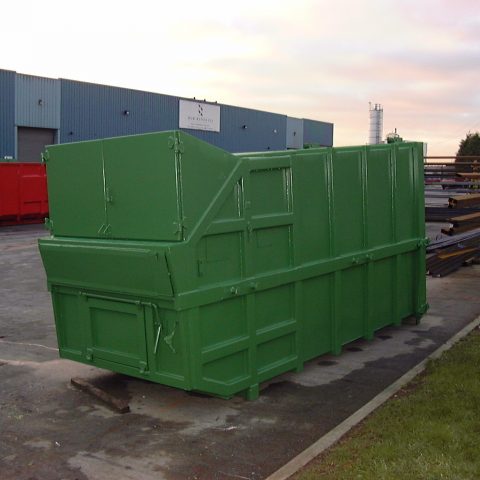

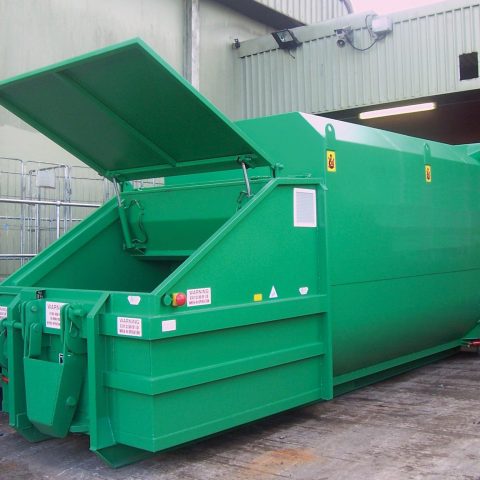

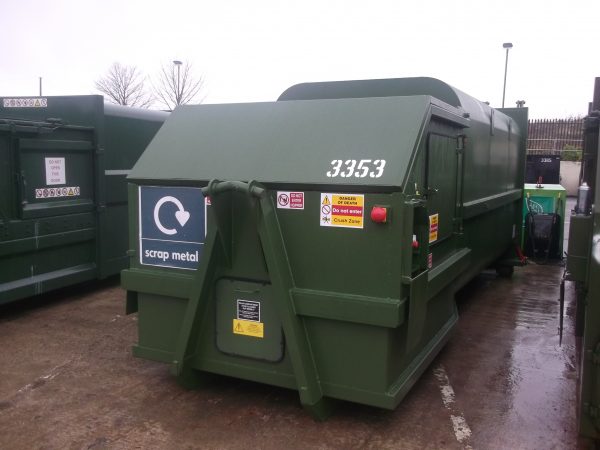

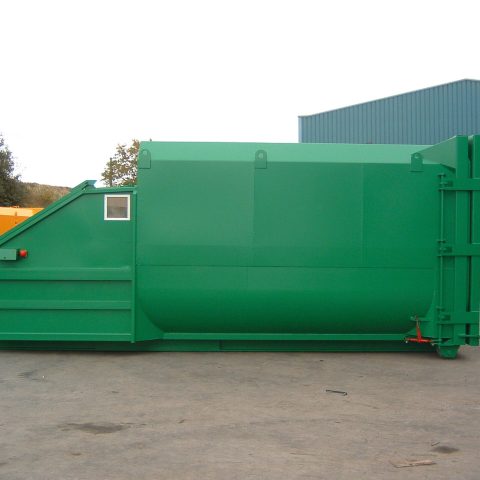

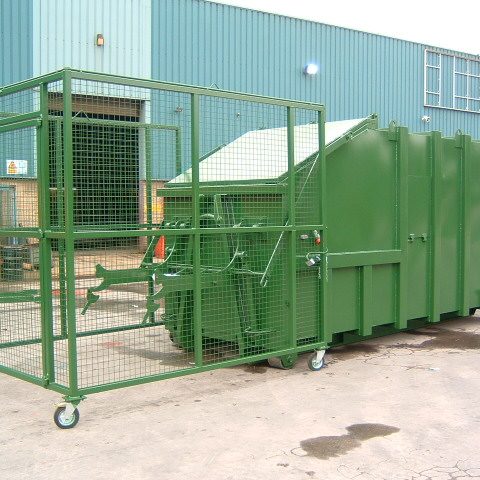

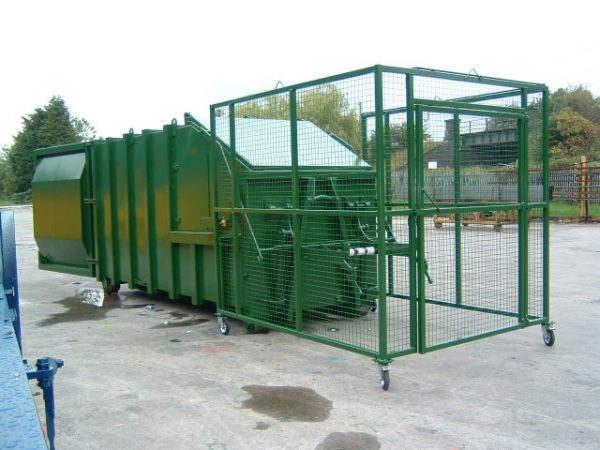

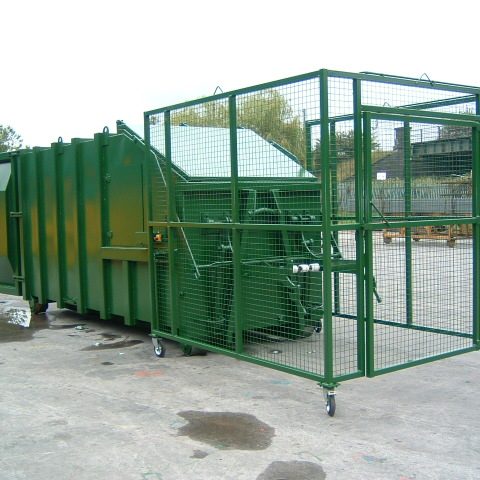

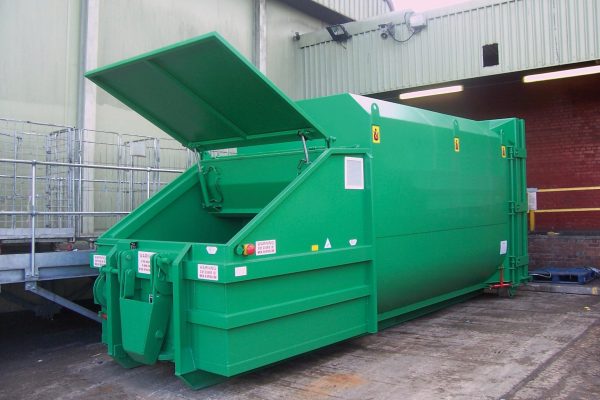

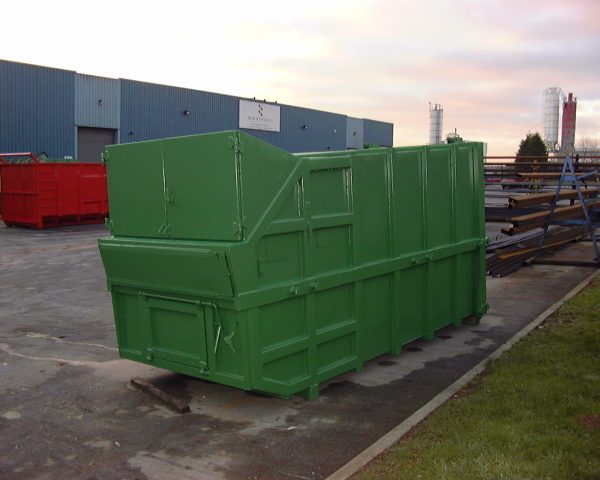

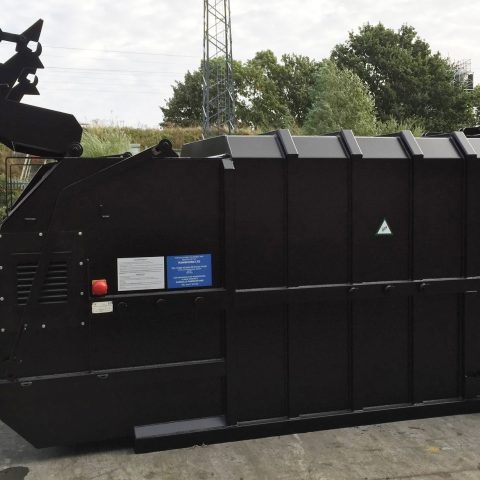

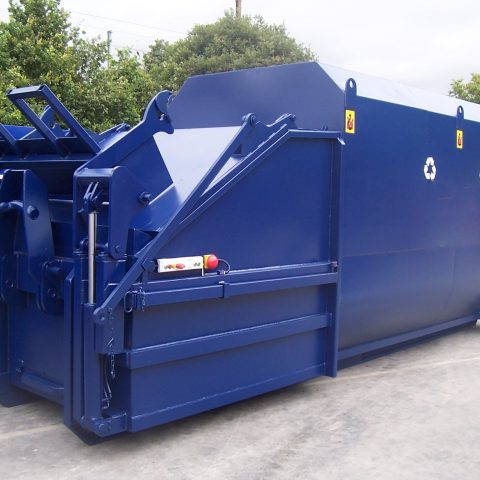

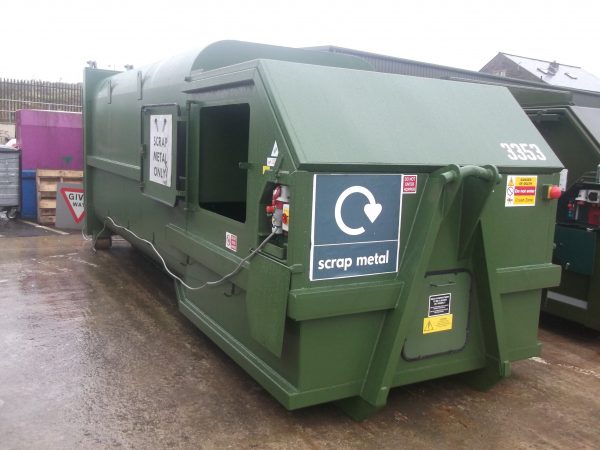

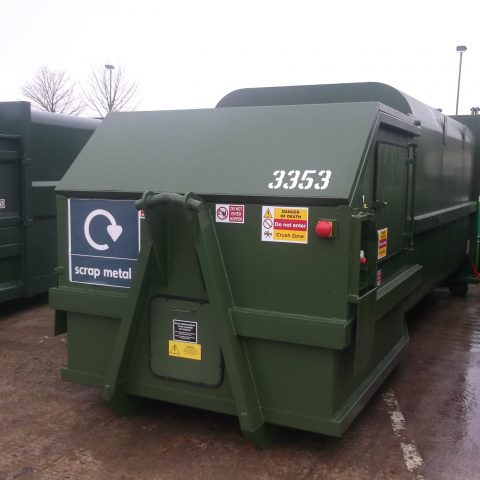

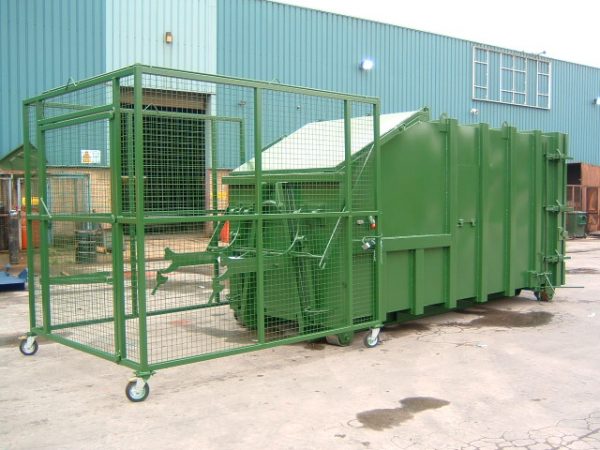

Our skiplift portable compactors can be manufactured with enclosed hoppers for hand loading of waste or with hydraulic bin loaders. The hooklift portable compactors can be manufactured with a range of open and closed hopper styles to suit individual customer loading requirements. Options on the hooklift portable compactors include an extra set of rollers and ground handling draw bar on the ejection door, when the loading end has to be faced away from the vehicle.

Power Unit

Hydraulic power is supplied by an integrated, electrically driven power pack, mounted and enclosed in locations away from the compacted waste. The force is applied by two double acting hydraulic cylinders, set up to operate in a scissor like action to reduce space requirements. Pressure switches and mechanical overload valves safeguard the system by cutting out when the circuit pressure reaches maximum safe limits.

Electrical Systems

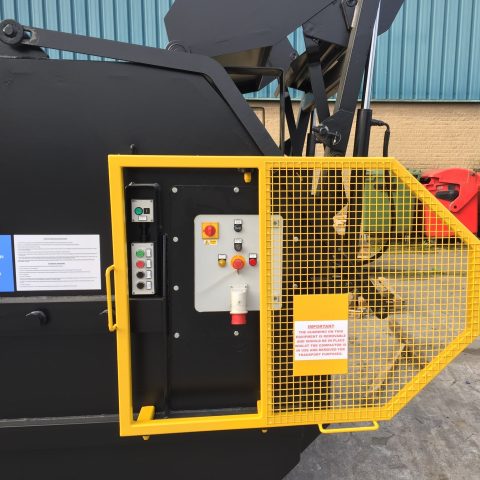

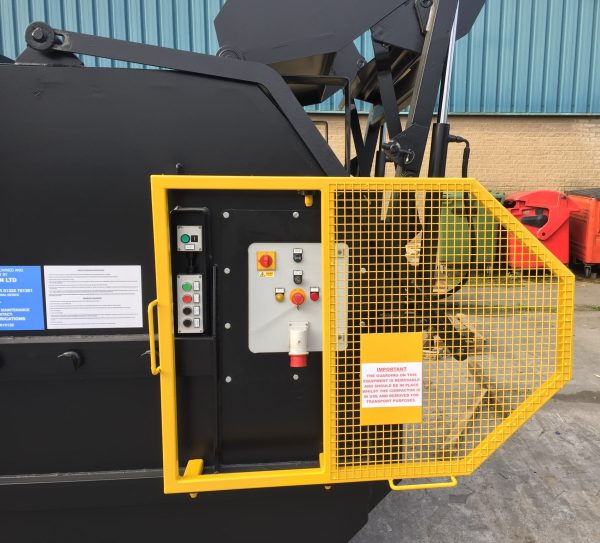

A weatherproof control panel is mounted adjacent to the power pack. Most models are supplied with a remote, vandal proofed, key switched start/stop station with EMERGENCY STOP, pre full and full warning lights. All of our portable compactors are supplied with an approved power inlet socket and up to 10 metres of power cable (as standard). All of our portable compactors run on a 415V, 50 HZ, 3 phase plus earth system.

Safety

All units are manufactured to meet the Health & Safety requirements of the Machinery Directive and other relevant safety standards, including CHEM. Safety switches or fixed guards are located at access points to all reachable moving parts. The hydraulic ram is programmed to retract on starting up to ensure safe operation.

Refurbishment

To maximise the lifespan of compaction units, we can undertake complete refurbishment of damaged or worn out equipment.

Enquire about these products

Model PP10 PP15 PP25
Removal Vehicle Skip Lift Hook Lift Hook Lift
Capacity M3 10 15 25
Charge Box Loading Aperture Length mm 700 1450 1450
Charge Box Loading Aperture Width mm 1230 1930 1930
Compaction force Kgf 17500 30000 30000
Maximum Length mm 4400 6125 6925
Maximum Width mm 2000 2640 2640
Maximum Height mm 2320 2440 2970
Loading Height (minimum) mm 1100 1250 1250
Packing Blade Height mm 600 763 763
Motor Size kw 5.5 7.5 7.5
Cycle Time Secs (under no load) 45 50 50
Power Supply 415v, 3ph, 50hz, neutral & earth 20A 32A 32A
*All measurements and performance data are approximate and are subject to change due to ongoing development.
